YDTech® manufacturer of metric drawn cup needle roller bearings(HK,HF,BK,F,FH,FY,MF,MFH,MFY); supplier of loose inch drawn cup needle roller bearings(SCE,BCE,SCH,BCH,SN,B,BH,M,MH) in china.

drawn cup needle roller bearings with open ends and with closed end are complete units comprising thin-walled, drawn cup outer rings and needle roller and cage assemblies. Drawn cup needle roller bearings are also available in a full complement design. the majority of the bearings are of a single row design.

Model F, FH open-end drawn cup needle roller bearing with full of needles,

Model MF, MFH hole-sealed drawn cup needle roller bearing with full of needles,

Model FY open-end drawn cup needle roller bearing with full of flat-head needles,

Model MFY close-end drawn cup needle roller bearing with full of flat-head needles

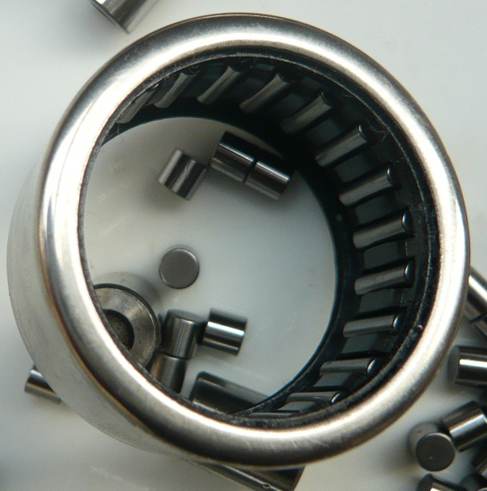

Model HK, TA, TLA, open-end drawn cup needle roller bearings with retainer,

Model BK close-end drawn cup needle roller bearing with retainer,

Model SCE, BA, J, JH, drawn cup needle roller bearings (Inch series).

HK...RS HK...2RS BK...RS Series needle roller bearings The sealed drawn cup needle roller bearing is mounted with sealing lip. In general, the sealing lip can protect bearing from penetration of impurities and leakage of lubricating grease.

F FH MF MFH FY MFY series needle roller bearings, this kind bearing consists of full of needles extending to outer raceway, thus bearing high load. It is applied to the situation where the devices mounted with needle roller bearings run in swinging.

drawn cup needle roller bearings with open ends and with closed end
11 types of drawn cup needle roller bearings
HK	piercing needle roller bearings drawn cup type
HK...RS	piercing needle roller bearings drawn cup type, single sided sealing
HK...2RS	piercing needle roller bearings drawn cup type, double sealed
BK	seal type needle roller bearings drawn cup
BK...RS	seal type needle roller bearings drawn cup, sealed on one side
MF	seal type needle roller bearings drawn cup, pointed needle age
MFY	seal type needle roller bearings drawn cup, flat over needle
F	piercing needle roller bearings drawn cup type, pointed needle age
FY	piercing needle roller bearings drawn cup type, flat head over the needle type
SCE	perforation type needle roller bearings drawn cup, inch series
BCE	seal type needle roller bearings drawn cup, inch series

grades of drawn cup needle roller bearings with open ends and with closed end

drawn cup needle roller bearings with open ends and with closed end
more than 200 types of drawn cup needle roller bearings with open ends and with closed end
HK0408TN	HK0509	HK0607	HK0608	HK0609	HK06×12×08	HK0709	HK0808
HK0810	HK08×14×10	HK08×14×12	HK0908	HK0910	HK0912	HK09×15×10	HK1010
HK1012	HK1015	HK1208	HK1210	HK1212	HK1312	HK1410	HK1412
HK1416	HK15×20×12	HK15×20×16	HK15×20×20	HK1512	HK1514	HK1515	HK1516
HK1522	HK15×22×12	HK16×21×09	HK1612	HK1614	HK1616	HK1617	HK1622
HK1712	HK171214	HK1716	HK1718	HK1812	HK1816	HK19×27×16	HK2010
HK20102	HK2014	HK2016	HK2018	HK2020	HK2025	HK2030	HK20×28×16
HK2210	HK2212	HK2216	HK2220	HK2230	HK2512	HK2514	HK2516
HK2518	HK2520	HK2525	HK2526	HK2538	HK25×35×20	HK2816	HK2818
HK2820	HK3012	HK3016	HK3018	HK3020	HK3026	HK3038	HK30×38×12
HK30×38×16	HK30×38×24	HK30×38×32	HK3224	HK3232	HK32×40×32	HK3512	HK3516
HK3520	HK35×43×16	HK35×43×25	HK35×43×32	HK38×48×30	HK4012	HK4016	HK4020
HK40×50×32	HK40×50×38	HK4512	HK4520	HK5012	HK5020	HK5025	HK5520

detected size of drawn cup needle roller bearings

drawn cup needle roller bearings
7 drawn cup needle roller bearings
norminal inside diameter Fw(mm)		Fwmin(um)		standard ring diameter
over	upto	upper deviation	lower deviation	standard ring diameter
-	3	+24	+6	D-0.016
3	6	+28	+10	D-0.016
6	10	+31	+13	D-0.016
10	18	+34	+16	D-0.020
18	30	+41	+20	D-0.024
30	50	+50	+25	D-0.028
50	80	+60	+30	D-0.033

TA TLA TAM TLAM type needle roller bearings needle bearing,Drawn cup needle roller bearing with retainer -> TA TLA TAM TLAM The outer ring of drawn cup needle roller bearing is punched with the steel sheet. It has the small sectional height.

HK,BK type needle roller bearings needle bearing,Drawn cup needle roller bearing with retainer -> HK BK The outer ring of drawn cup needle roller bearing is punched with the steel sheet. It has the small sectional height and the large load carrying .

SCE BCE type needle roller bearings needle bearing, drawn cup needle roller bearing with retainer -> SCE,BCE The outer ring of drawn cup needle roller bearing is punched with the steel sheet. It has the small sectional height and the large load carry

BHA type Needle roller bearings needle bearing, drawn cup needle roller bearing with retainer -> BHA..

SCH BCH type needle roller bearings needle bearing, drawn cup needle roller bearing with retainer -> SCH,BCH.

BA type Needle roller bearings needle bearing, drawn cup needle roller bearing with retainer -> BA.
