YDTech® manufacturer of precision cylindrical roller bearings,supplier of loose needle roller bearings or axial pin roller bearings in china.

What's axial needle bearings or axial needle roller bearings?

"Axial Needle Bearing" and "Axial Needle Roller Bearing" are just two variations of a type of bearing that the bearing industry typically calls "Roller Thrust Bearings" or "Cylindrical Roller Thrust Bearings." In all of these cases, the bearing is designed to support high axial loads as compared to radial ball bearings.

Generally, roller thrust bearings consist of two washers and rolling elements which, in this case, are rollers as opposed to thrust ball bearings which use balls as their rolling elements. While ball thrust bearings sometimes use groves in the raceways, typically roller thrust bearings use retainers to ensure proper spacing and orientation.

A cylindrical roller thrust bearing is a particular type of roller bearing. Like other roller bearings, they permit rotation between parts, but they are designed to support a high axial load while doing this . Higher speed applications require oil lubrication. Generally, they are composed of two washers and the cylindrical roller elements which are typically caged. As opposed to roller thrust bearings, ball thrust bearings can generally operate at higher speeds but at lower loads.

tolerance symbols of cylindrical rollers

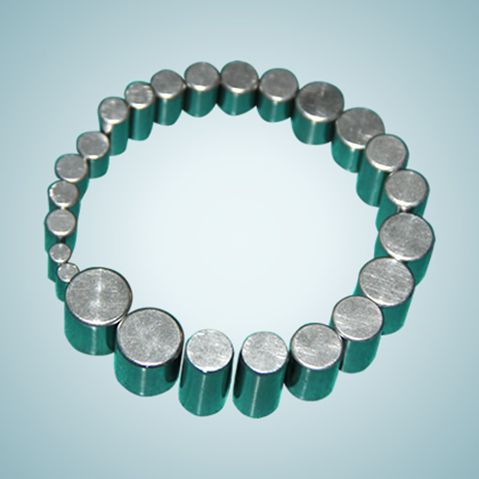

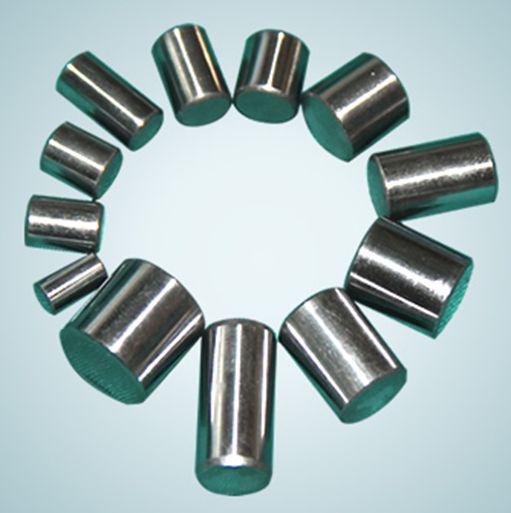

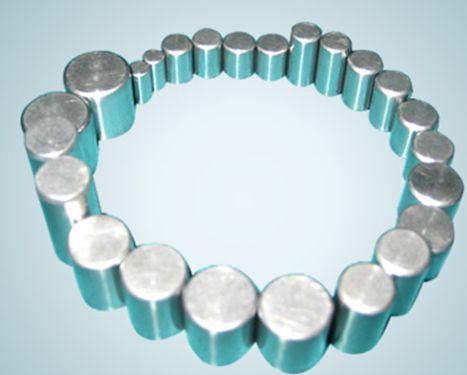

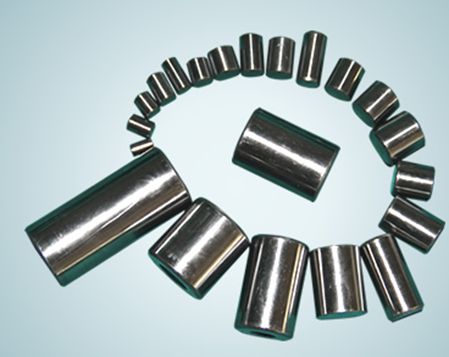

needle roller bearings,cylindrical roller bearings, axial pin bearings
No.	symbol	definition of explanation
11	D	Nominal outside diameter
12	D_s	Single outside diameter
13	D_mp	Mean outside diameter; arithmetical mean of the largest and smallest single outside diameters in one plane
14	_Ds	Deviation of a single outside diameter from the nominal _Ds = D_s - D
15	_Dmp	Deviation of the mean outside diameter from the nominal _Dmp = D_mp - D
16	V_Dp	Outside diameter variation; difference between the largest and smallest single outside diameters in one plane
17	V_Dmp	Mean outside diameter variation; difference between the largest and smallest mean outside diameters of one ring or washer
18	r_s	Single chamfer dimension
19	r_smin	Smallest single chamfer dimension of r_s, r₁, r₂, r₃, r₄
20	r₁, r₃	Radial direction chamfer dimensions
Total	10 needle roller bearings,cylindrical roller bearings, axial pin bearings

our cylindrical roller thrust bearings currently start with bore sizes from 45 mm and go up to 360 mm with outer diameters from 64 mm to 440 mm. Let us know if you need sizes outside these dimensions. If you need help in selecting the best products for your particular application, please remember that design engineering and application assistance are available from us as part of our value-added services designed to make your job easier.
