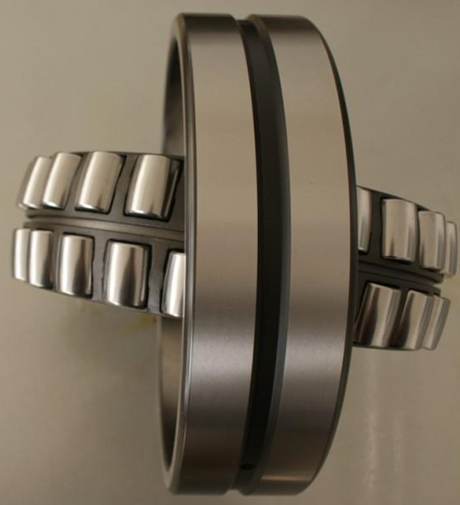

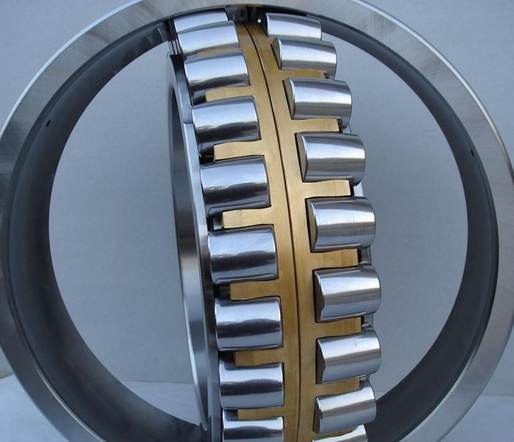

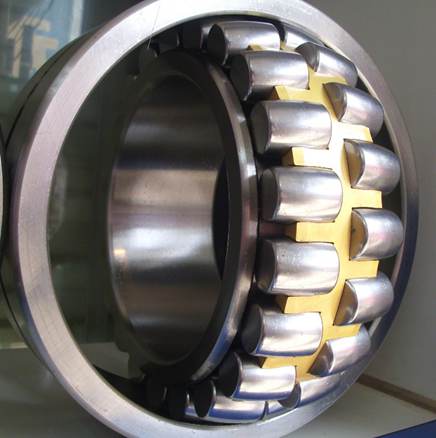

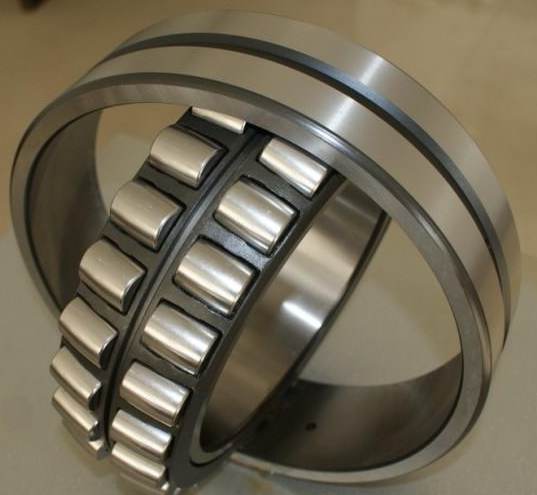

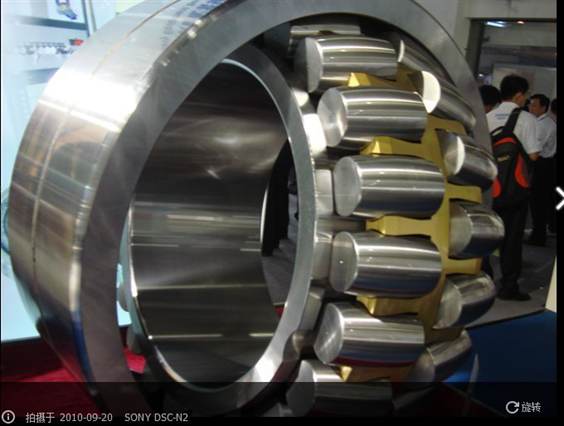

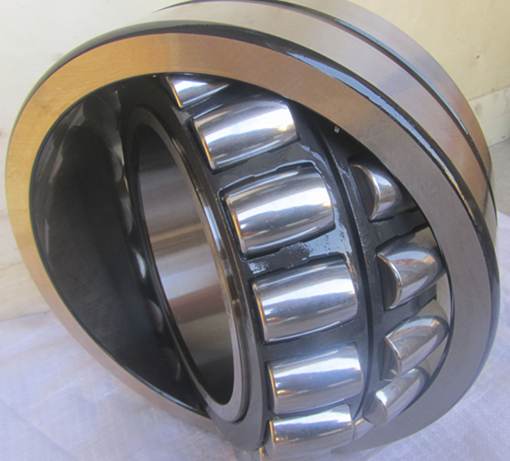

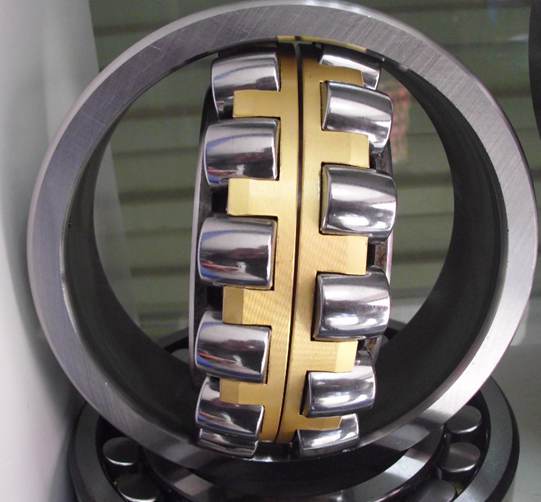

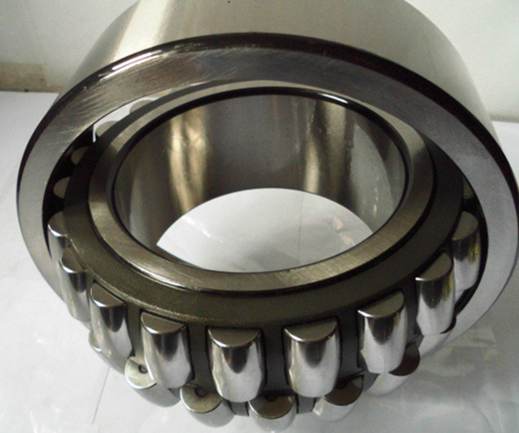

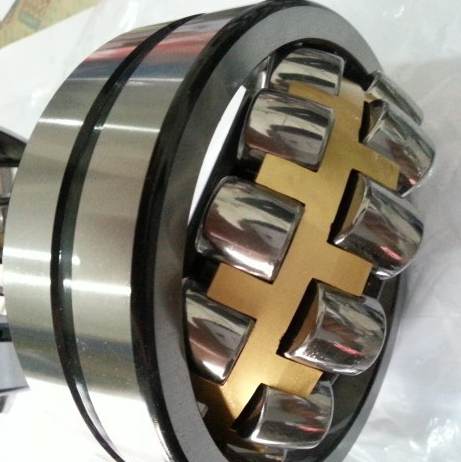

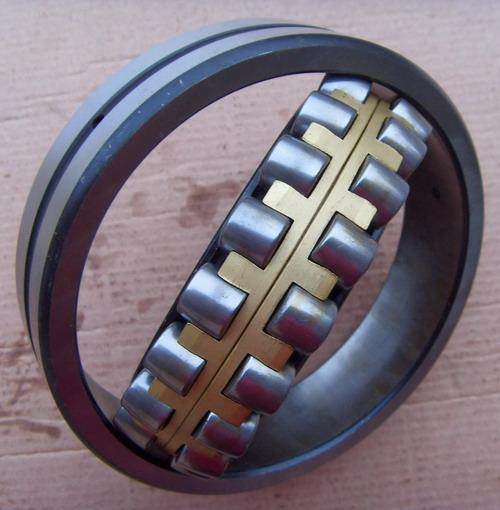

spherical roller bearing is a rolling element bearing which involve heavy or impact loading. they come with cylindrical or tapered bores and can be supplied with adapter assemblies as well as withdrawal sleeves, the misalignment is possible due to the spherical internal shape of the outer ring.
Spherical roller bearings are available as double-row, combination radial and thrust bearings. They use a spherical or crowned roller as the rolling element. The race in the outer ring is spherical in shape, which allows for some misalignment of the shaft and the housing. Spherical roller bearings are unequalled in their capacity for high loads and their tolerance to shock loads, but have limited speed capabilities.
they perform consistently, even under extreme conditions, such as application-specific stress and marginal lubrication. the cage of a spherical roller bearing provides high dimensional accuracy and functionality. According to some estimates, spherical roller bearings have twice the running life of conventional bearings.
Most spherical roller bearings are made of alloy steels or low-carbon steels. Chrome-plated products are also available. Some applications require the use of case-hardened or through-hardened, high-carbon, bearing-quality steel.
high-carbon grades of steel do not require carburizing and can be case-hardened by induction heating or through-hardened by conventional heating methods. When low-carbon, carburized grades of steel are used, carbon is introduced after the spherical roller bearings are machined to a depth sufficient to produce a hardened case that can sustain bearing loads. the addition of carbon and alloys ensures the proper combination of a hard, fatigue-resistant case and a tough, ductile core.
new models | old models | sizes(d×D×T) | weight(kg) | ||||||
---|---|---|---|---|---|---|---|---|---|
22217 | 3517 | 85×150×36 | 2.8 | ||||||
22217/C4 | 4G3517 | 85×150×36 | 2.8 | ||||||
22232 | 3532 | 160×290×80 | 22.2 | ||||||
22238 | 3538 | 190×340×92 | 36.29 | ||||||
22316 | 3616 | 80×170×58 | 6.4 | ||||||
22320 | 3620 | 100×215×73 | 12.8 | ||||||
22322 | 3622 | 110×240×80 | 19.04 | ||||||
22324 | 3624 | 120×260×86 | 22.2 | ||||||
22326 | 3626 | 130×280×93 | 27.58 | ||||||
22328 | 3628 | 140×300×102 | 35.15 | ||||||
22334 | 3634 | 170×360×120 | 59.76 | ||||||
20208TNO | 20208TN9 | 40×80×18 | 0.448 | ||||||
20208 | 20208 | 40×80×18 | 0.448 | ||||||
spherical roller bearings,rolls bearings for spherical rollers,spherical bearings |
21304CC | 21305CC | 21306CC | 21307CC | 21308CC | 21309CC | 21310CC | 21311CC | 21312CC | ||
21313CC | 21314CC | 21315CC | 21316CC | 21317CC | 21318CC | 21319CC | 21320CC | 213022CC | ||
23024 CC/W33 | 23028 CC/W33 | 23030 CC/W33 | 23032 CC/W33 | 23034 CC/W33 | 23036 CC/W33 | 23038 CC/W33 | 23040 CC/W33 | 23044 CC/W33 | ||
23048 CC/W33 | 23052 CC/W33 | 23056 CC/W33 | 23060 CC/W33 | 23064 CC/W33 | 23068 CC/W33 | 23072 CC/W33 | 23076 CC/W33 | 23080 CC/W33 | ||
23084 CC/W33 | 23088 CC/W33 | 23092 CC/W33 | 23096 CC/W33 | 230/500 CC/W33 | 24024 CC/W33 | 24026 CC/W33 | 24028 CC/W33 | 24030 CC/W33 | ||
24032 CC/W33 | 24034 CC/W33 | 24036 CC/W33 | 24038 CC/W33 | 24040 CC/W33 | 24044 CC/W33 | 24048 CC/W33 | 24052 CC/W33 | 24056 CC/W33 | ||
24060 CC/W33 | 24064 CC/W33 | 24068 CC/W33 | 24056 CC/W33 | 24060 CC/W33 | 24064 CC/W33 | 24068 CC/W33 | 24072 CC/W33 | 24076 CC/W33 | ||

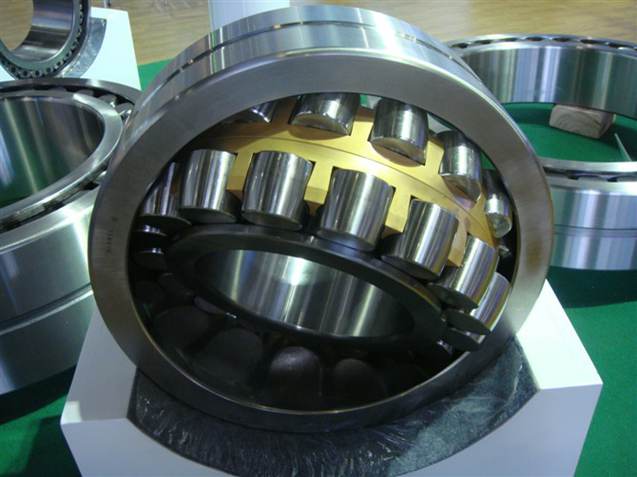

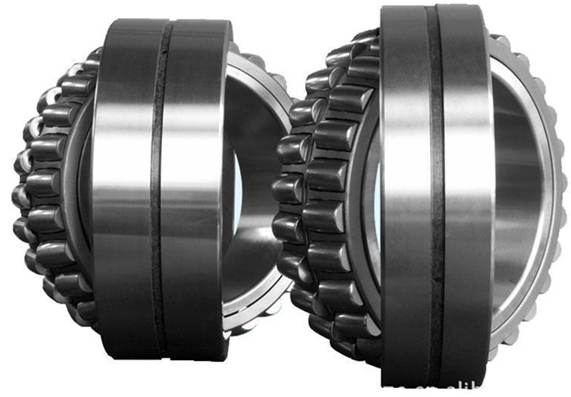

24080 CC/W33 | 24084 CC/W33 | 24088 CC/W33 | 24092 CC/W33 | 24096 CC/W33 | 240/500 CC/W33 | 22205 CC/W33 | 22206 CC/W33 | 22207 CC/W33 | ||
22208 CC/W33 | 22209 CC/W33 | 22210 CC/W33 | 22211 CC/W33 | 22212 CC/W33 | 22213 CC/W33 | 22214 CC/W33 | 22215 CC/W33 | 22216 CC/W33 | ||
22218 CC/W33 | 22219 CC/W33 | 22220 CC/W33 | 22222 CC/W33 | 22224 CC/W33 | 22226 CC/W33 | 22228 CC/W33 | 22230 CC/W33 | 22232 CC/W33 | ||
222034 CC/W33 | 22236 CC/W33 | 22238 CC/W33 | 22240 CC/W33 | 22244 CC/W33 | 22248 CC/W33 | 22252 CC/W33 | 22260 CC/W33 | 22264 CC/W33 | ||
... | ... | ... | ... | ... | ... | ... | ... | ... | ||
spherical roller bearings,rolls bearings for spherical rollers,spherical bearings |
---|
bore size and outside diameter are important specifications to consider when selecting spherical roller bearings. The bore size is the bearing's smallest dimension. The outer diameter includes the bearing housing, but excludes the flange. Other important specifications for spherical roller bearings include overall width, rated speed (oil), static axial load, static radial load, dynamic axial load, and dynamic radial load.
static axial and static radial loads are, respectively, the maximum axial and radial loads that bearings can withstand without permanent deformation. Dynamic axial and dynamic radial loads are, respectively, the calculated axial and radial loads under which a group of identical bearings with stationary outer rings can endure for a rating life of 1 million revolutions of the inner ring.
