ball valves are durable; they can still work perfectly after years of disuse. they do not offer the fine control, but are sometimes used for throttling,which allows for quick shut-off. a v-port ball valve which can be referred to as a type of control valve has the best regulation performance. these valves are suitably used for fluid like fiber, tiny solid particles and slurry medium.
the body of ball valves may be made of metals. such as: forged steel ball valves, stainless steel ball valves, alloy ball valves, bronze ball valves, cast steel ball valves and carbon steel ball valves ect.
stainless steel ball valves.the body can also be made of non-metal materials. ceramic ball valves are erosion-resisting, wear-resisting, cavitation-resisting and antioxidant. besides that, some ball valves materials are special, like, special alloy ball valves, special steel ball valves and hastelloy ball valves ect. transmitting and processing of media that are heavily corrosive, duplex stainless steel ball valves or super stainless steel ball valves are usually selected to mitigate the problems for they can work well in the area with corrosive surroundings..

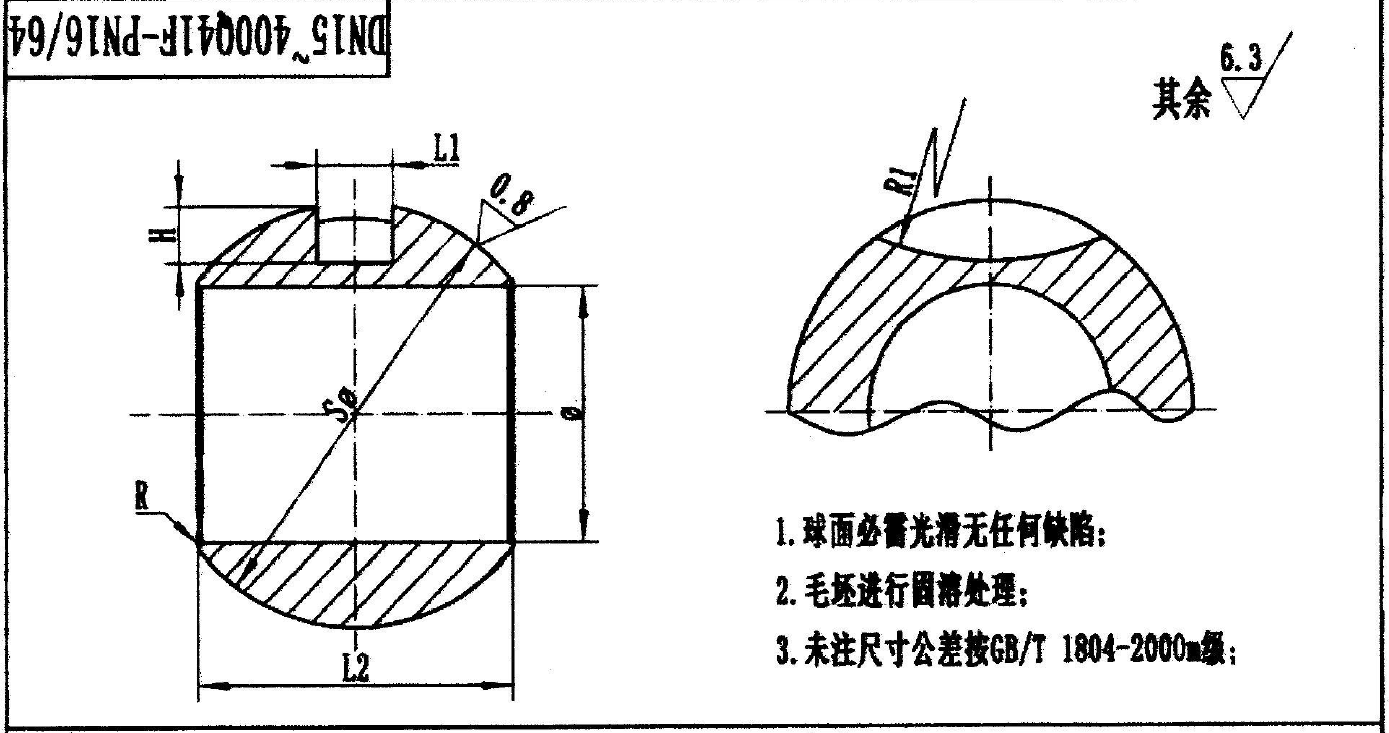

types | Sφ | φ | R | R1 | H | L1 | L2 | ||
DN15 | Sφ30 (+0.084,0) | φ15 | R0.5 | R30 | 5.5 | 6(+0.075,0) | 25 | ||
DN20 | Sφ36 (+0.10,0) | φ20 | R0.5 | R30 | 5.5 | 8(+0.09,0) | 28.5 | ||
DN25 | Sφ43 (+0.10,0) | φ25 | R0.5 | R30 | 6.0 | 8(+0.09,0) | 33.5 | ||
DN32 | Sφ53 (+0.10,0) | φ32 | R0.5 | R40 | 7.5 | 10(+0.09,0) | 41 | ||
DN40 | Sφ66 (+0.12,0) | φ40 | R0.5 | R40 | 7.5 | 12(+0.11,0) | 51 | ||
DN50 | Sφ80 (+0.12,0) | φ50 | R0.6 | R50 | 9.0 | 14(+0.11,0) | 60 | ||
DN65 | Sφ 105(+0.14,0) | φ65 | R0.8 | R50 | 12 | 16(+0.11,0) | 80 | ||
DN80 | Sφ 125(+0.16,0) | φ80 | R1.0 | R50 | 14 | 18(+0.13,0) | 93.2 | ||
DN100 | Sφ155 (+0.16,0) | φ100 | R1.0 | R50 | 15 | 22(+0.13,0) | 115 | ||
DN125 | Sφ 195(+0.185,0) | φ125 | R1.0 | R50 | 18 | 24(+0.13,0) | 145 | ||
DN150 | Sφ235 (+0.185,0) | φ150 | R1.0 | R60 | 22 | 28(+0.13,0) | 177 | ||
DN200 | Sφ 301(+0.21,0) | φ200 | R2.0 | R60 | 25 | 32(+0.16,0) | 220 | ||
DN250 | Sφ 385(+0.22,0) | φ250 | R2.5 | R60 | 28 | 32(+0.16,0) | 288 | ||
DNDN300 | Sφ460 (+0.25,0) | φ300 | R3.0 | R75 | 30 | 36(+0.16,0) | 343 | ||
DN350 | Sφ520 (+0.25,0) | φ350 | R4.0 | R75 | 35 | 40(+0.16,0) | 378 | ||
DN400 | Sφ600 (+0.25,0) | φ400 | R4.0 | R100 | 40 | 40(+0.16,0) | 439 | ||

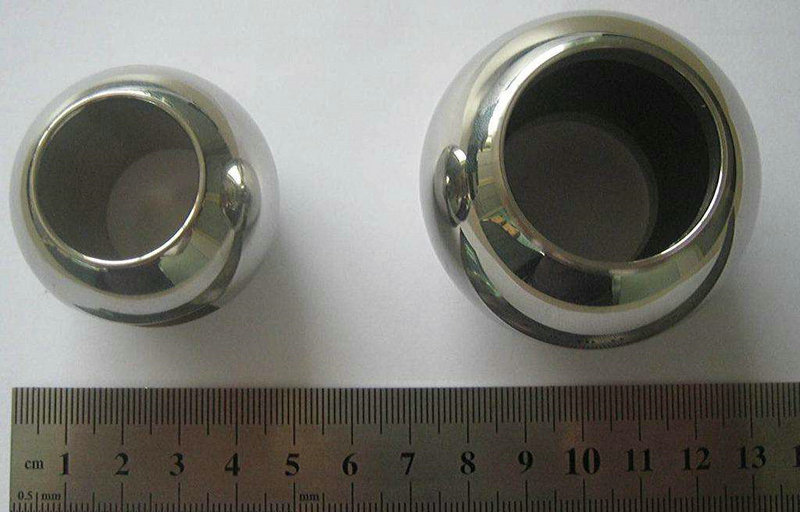

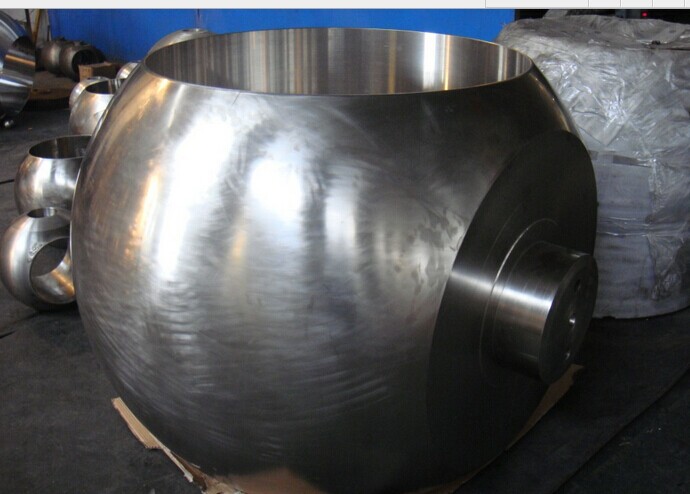

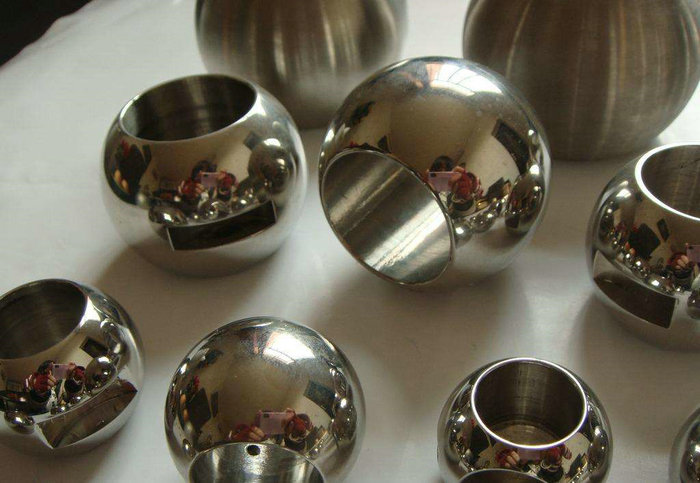

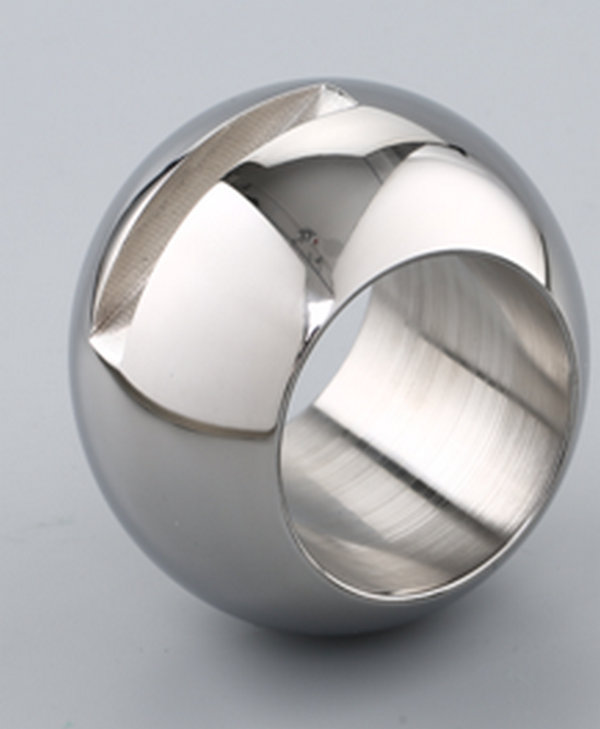

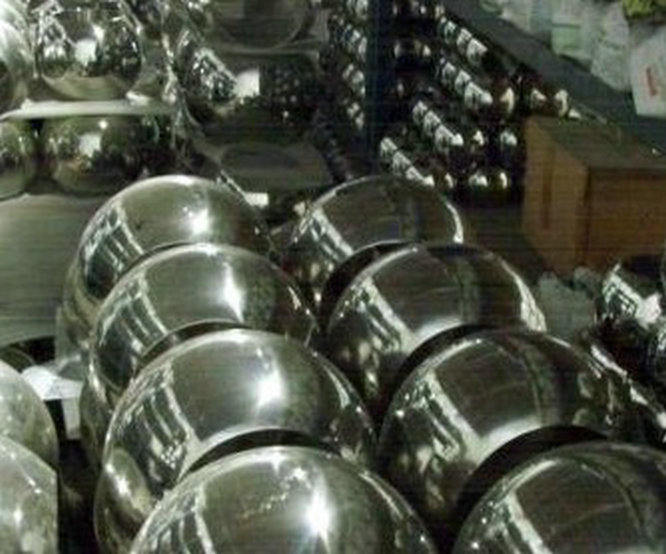

tfixed valve balls parameters, solid valve spheres parameters,stainless steel SS304, SS316 valve balls, titanium balls,ceramic valve spheres, silicon nitride Si3N4 balls, zirconium oxide ZrO2 spheres. |
---|
