companies of DJY6000 CUAS vehicle inspection and testing integrated equipments, handheld flying hand positioning terminal,DJI®anti drone system! suppliers of drone navigation deception systems,Ku band low altitude surveillance radar, photoelectric target tracking servo turntable in china.

JDY6000 UAV defense system adopts passive detection with high integration design, which is suitable for villas, mansions, office parks, industrial facilities and rapid deployment. A single device can detect and counter the UAV and provide all-round low-altitude protection anytime and anywhere.

The system supports Ethernet /4G wireless communication, freely expands networking, and multi-station can realize wireless grid intelligent management and control. It can also be used for front-end data processing and data uploading through the dedicated workstation for 4G transmission, and can be controlled on the mobile terminal after being uploaded to the cloud platform.

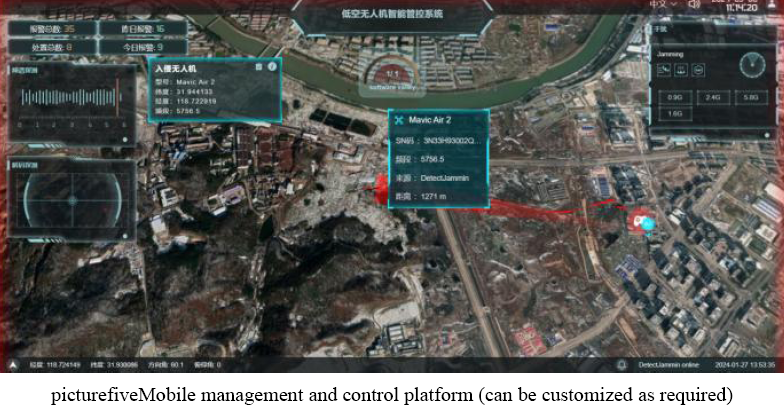

The management and control platform is a central hub for sharing and exchanging multi-sensor information and multi-network nodes. Through distributed and multi-center resource. sharing services, the interconnection and data sharing of multi-center data resources and multi-nodes can be realized, and various sensor data of multi-nodes in the region can be stored, managed and analyzed, which is the core of the system. Effectively complement with personnel monitoring to form man-machine and man-technology joint prevention.

JDY-6000 low-altitude UAV defense system is composed of one UAV defense device (detecting and countering), one power management device and a back-end management platform (monitoring and controlling the whole process), which can be flexibly configured in various scenarios

VIP escort, explosion-proof special police, concerts, large-scale conference activities, airport management, examination rooms, prisons, military sites, courts, conference rooms, theaters, hospitals, government agencies, financial institutions, churches, monasteries, libraries, business negotiations, gas stations, personal privacy protection and other places that need silence, confidentiality and information security.

detection index for the DJY6000 CUAS (counter unmanned aircraft systems), anti drones defense systems

parameter of the DJY6000 anti-UAV defense system of control platform

parameters of JDY6000 low altitude UAV defense systems, JDY6000 CUAS (counter unmanned aircraft systems)

JDY6000 low altitude UAV defense systems parameters of JDY6000 low altitude UAV defense systems, JDY6000 CUAS (counter unmanned aircraft systems)

UAV intrusion detection and early warning, through the front-end detector and the back-end UAV spectrum feature sample library model for real-time comparison, all-day, all-weather, unattended, according to the level of dangerous events for pre-judgment. It can detect the intrusion information of multiple UAVs at the same time, and give multi-dimensional early warning to illegally invading UAVs through voice and early warning lights at the first time.

The interference suppression of UAV in JDY-6000 system belongs to soft killing technology. The remote control signal and image transmission signal of UAV are suppressed by 360 omni-directional electromagnetic interference or internal directional direction, so that the UAV control of the remote controller, thus realizing the return or forced landing of UAV. The system integrates the detection data with the management and control strategy, and the management and control platform automatically judges the optimal strike means according to the event level, external factors and other conditions. Strike disposal situation, geospatial information,etc.

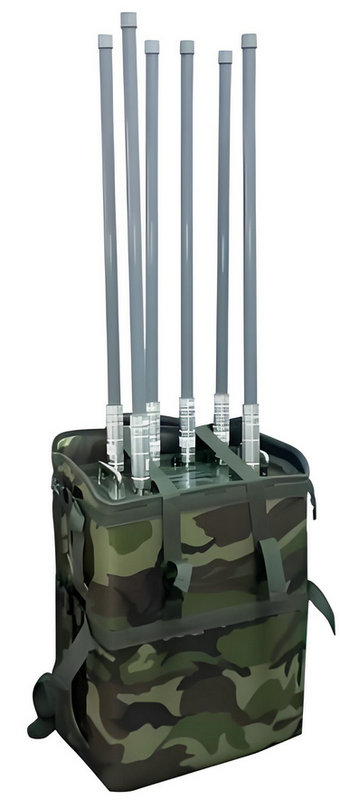

This interceptor is mainly used for compulsory control of unmanned aerial vehicles (UAVs) or airplane models in flight, so as to cut off the connection between UAVs and remote controllers at a long distance and ensure the safety of low-altitude airspace in the area. According to the principle of mobile phone (radio communication), the product uses broadband scanning technology to cut off the remote control/image transmission signals of 2.4G and 5.8GHz, and remotely control the navigation/automatic return signals of 868MHz/912MHz/916MHz/GPS/ Beidou /Glonass L1L2, showing the phenomena of searching the network, no signal and no service. Disable the drone remote control; UAV ground control can't receive aerial pictures and videos; The drone cannot be located; Interceptors can force drones to land or return.

JDY6000 integrated UAV defense equipment integrates UAV detection and counter-measures, and has the functional characteristics of integrated detection and attack. The equipment can detect the illegally invaded UAV by identifying and decoding the characteristics of radio frequency scanning, and can find the control signal and image transmission signal between the intercepted UAV and the remote controller. It can be monitored and recorded 7×24 hours without interval, and an all-weather no-fly zone for drones can be built to form a targeted and effective barrier. Through electromagnetic suppression technology, the interference of remote control link, image transmission link and navigation signal of UAV is blocked in all directions, forcing UAV to return or land. The equipment supports stand-alone and networking work, and has the characteristics of high integration, good flexibility and integrated design.
