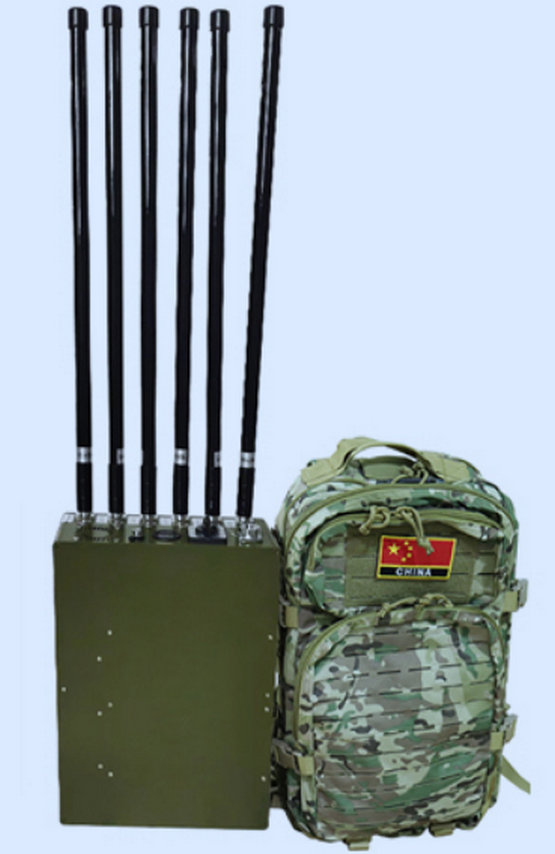

the typle CUAS1030 anti-UAV luggages integrated equipment integrates detection, tracking, positioning, countermeasures, and networking functions. A single device can realize the entire process of drone control. the system has sufficient battery life, light weight, and reinforced design, which is very suitable for carrying on the back and hand-held.
the anti-drone equipment detects illegally intruding drones through radio frequency scanning feature recognition and decoding, and can discover and intercept control signals and image transmission signals between the drone and the remote controller; and uses electromagnetic suppression technology to achieve Interference and blocking of the drone's remote control link, image transmission link and navigation signal force the drone to return or land.
the anti-drone equipment supports stand-alone and network work. It can be carried on the back, handheld, fixedly erected, PTZ rotated, and can be networked with 4 units to form a TDOA positioning detection system. It has high integration, good flexibility, and diverse applicable scenarios. features.
anti-drone can meet the needs of low-altitude drone defense such as personal portable protection, fixed-point protection, and key areas. TDOA distributed defense. It integrates equipment detection and attack, and supports unified command and management through the cloud platform, which makes up for the problems that traditional individual countermeasures equipment cannot be detected and cannot be managed in a unified manner.
the choice of counter-drone measures depends on the environment, and the regulatory framework in place. effective counter-drone strategies often involve a combination of technologies and protocols. countering drones, as counter-drones or anti-uav defense system (AUDS), is essential in scenarios where unauthorized or potentially malicious drone activity poses risks or disrupts operations. countering drones can involve various technologies and strategies to mitigate the threat.
anti-uav defense system (AUDS) of radio frequency jamming: jamming involves transmitting radio frequency signals on the same frequencies used by drones for communication and control. This disrupts the drone's ability to receive and respond to commands from its operator. anti-uav defense system (AUDS) of GPS spoofing: can deceive a drone's GPS system by transmitting false GPS signals, causing the drone to lose its accurate positioning and navigation capabilities. GPS spoofing can be used to divert or force drones to land.
types | CUAS1030 anti-UAV luggages | ||||||||
identification model: | brand drone, consumer drone, non-standard drone, WIFI drone, traversal drone | ||||||||
detection range: | 20MHz~6GHz | ||||||||
scanning frequency band: | 800MHz, 900MHz, 1.4GHz, 2.4GHz,,5.8GHz, | ||||||||
omnidirectional detection distance: | greater than 4km | ||||||||
analytical positioning distance: | 2km | ||||||||
analytical positioning accuracy: | less than 10m | ||||||||
network positioning accuracy: | less than 20m | ||||||||
analysis information: | UAV SN code, speed, altitude, position, pilot position | ||||||||
counterattack distance: | greater than 1km | ||||||||
dry to ton ratio: | 10:1 | ||||||||
eorking temperature: | 10 degrees ~ 55 degrees | ||||||||
power supply mode: | lithium battery, AC220V | ||||||||
battery capacity: | 130Wh | ||||||||
working time: | 60min | ||||||||
protection level: | IP66 | ||||||||
size: | 360mm*293mm*92mm | ||||||||
weight: | 6.5kg | ||||||||
CUAS1030 anti-UAV luggages, mini UAV,camera drones, best UAV aircraft, adults drones, big UAV systems,unmanned aerial vehicle UAV parts |
---|
