YDTech® MANUFACTURER of precision dowel pins(stainless chrome)steel metal brass or WC, Supplier of hardened dowel pins in china.

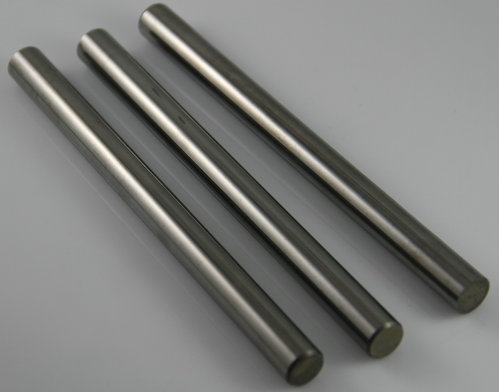

the dowel pins are ground cylindrical pins primarily manufactured for precise locating devices in machinery and assemblies. Steel dowel pins are machined to tight tolerances with the DIN and ISO standard pins being m6 on the diameter. the corresponding holes are usually reamed to allow for a press fit, clearance fit or transition fit.
we carefully consider the dowel pins material to be used as well as the dowel destination. We take into account the ductility of the destination hole and the ductility of the dowel pins material being used to manufacture the machined parts with accurate dimensions.
regarding size and precision, we manufactures precision dowel pins to exacting tolerances. We can produce dowel pins to a tolerance of +/-0.0002 utilizing stainless steel, tool steel, brass, or aluminum.
when designing engineered components, dowel holes are often used as reference points to control positioning alignment to attain repeatable assembly quality. When dowel pins are pressed into blind holes it is recommended that dowels with ‘air release flats’ are used to allow displacement of air preventing damage to the work piece or the ejection of the dowel.
Conversion of Surface finish and roughness Ra, Rz μm
| Surface finish | ▽1 | ▽2 | ▽3 | ▽4 | ▽5 | ▽6 | ▽7 | |||
| Surface roughness | Ra | 50 | 25 | 12.5 | 6.3 | 3.2 | 1.60 | 0.80 | ||
| Rz | 200 | 100 | 50 | 25 | 12.5 | 6.3 | 6.3 | |||
| Surface finish | ▽8 | ▽9 | ▽10 | ▽11 | ▽12 | ▽13 | ▽14 | |||
| Surface roughness | Ra | 0.4 | 0.20 | 0.100 | 0.050 | 0.025 | 0.012 | -- | ||
| Rz | 3.2 | 1.60 | 0.80 | 0.40 | 0.20 | 0.100 | 0.050 | |||
| Total | 3 grade for PRECISE DOWEL PINS | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
manufacturer and supplier of dowels and pins

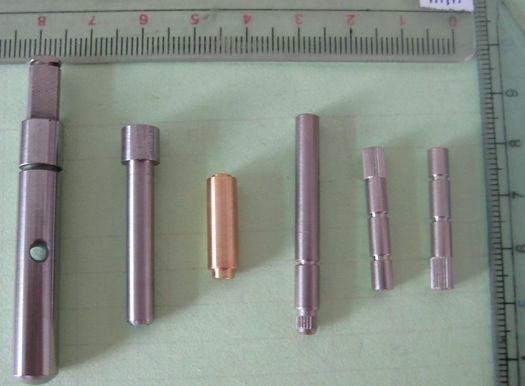

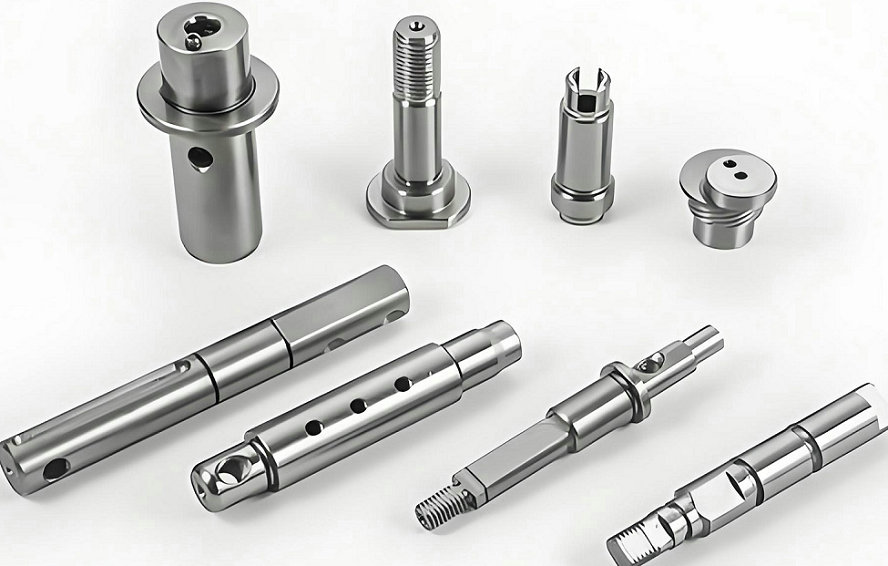

we manufactures dowel pins and other quality machined parts in a wide variety of sizes and material through CNC turning. Sizes range from .020 diameter to 1 inch diameter. We offer very short lead times on any standard or custom sized dowel pins
we utilizes state of the art equipment for dowel pin production and our staff of machining specialists has a long history of dowel pin manufacturing. contact us or request a quote today for your dowel pin project. we look forward to meeting your expectations for precision dowel pins.

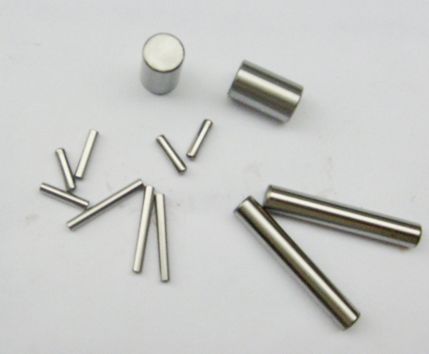

precision dowel pins are used in a variety of applications and are generally made to fractional diameters and lengths. dowel pins are machined with a chamfer on one end and a radius on the other for easy installation. dowels are made from 4037 alloy steel, 303 and 316 stainless steel, and 360 brass. top
