YDTech® MANUFACTURER of precision grooved(dowel) pins,Supplier of cylindrical pins(chrome*stainless steel) in china.

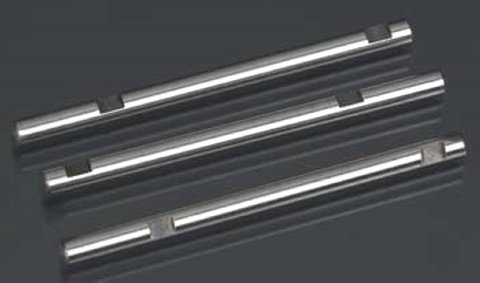

What's grooved(dowel) pins?

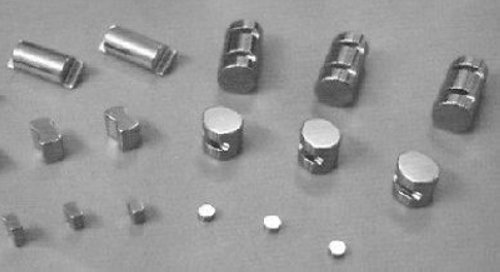

grooved pins are press-fit fasteners that combine superior holding power, unparalleled vibration and shock resistance, and easy installation. Each solid cylindrical pin features three longitudinal grooves that have been pressed in to expand the pin’s original diameter in a precisely controlled way. This creates a strong spring mechanism.

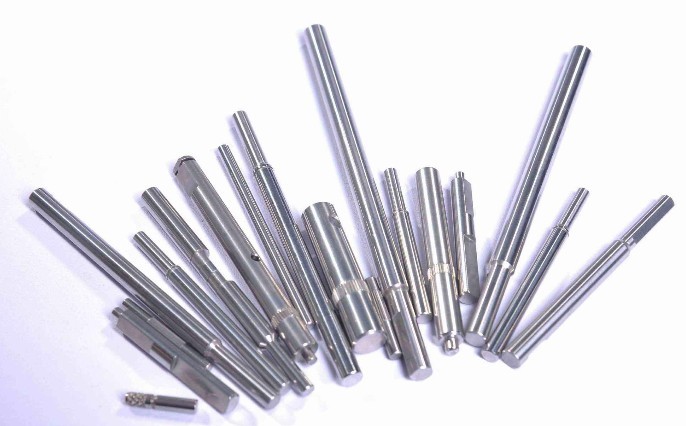

dowel pins are solid metal cylindrical fasteners that are used in a wide range of applications. Also known as parallel pins, dowel pins are used to retain parts in a fixed position, maintain alignment between different parts, or to join different components together.

how grooved pins work?

When pressed into a hole the size of the grooved pins original diameter, the hole compresses the expanded pin and creates a forceful hold. This unique locking action is cre ated without permanent deformation of either the pin or base material.

convert cylindrical pins size to weight

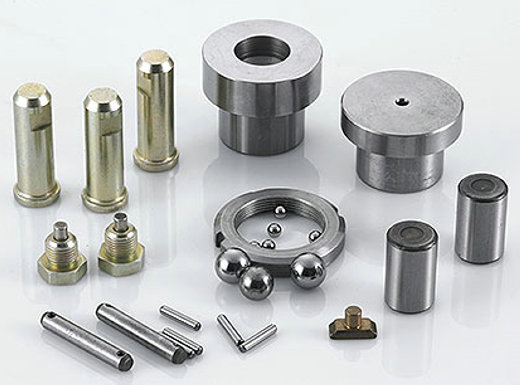

cylindrical pins and needle pins
size	kg/1000pcs	Dw_mm	Lw_mm
1*5.8	0.034	1	5.8
1*6.8	0.042	1	6.8
1*7.8	0.047	1	7.8
91*.8	0.059	1	9.8
1.5*5.8	0.08	1.5	5.8
1.5*6.5	0094	1.5	6.5
1.5*7.8	0.108	1.5	7.8
1.5*9.8	0.136	1.5	9.8
1.5*11.8	0.165	1.5	11.8
1.5*13.8	0.191	1.5	13.8
2*6.3	0.14	2	6.3
2*7.8	0.19	2	7.8
2*9.8	0.24	2	9.8
2*11.8	0.29	2	11.8
2*13.8	0.34	2	13.8
2*17.8	0.39	2	17.8
2*17.8	0.44	2	17.8
2*19.8	0.49	2	19.8
2*21.8	0.54	2	21.8
2.5*7.8	0.3	2.5	7.8
Total	20 cylindrical pins and needle pins

manufacturer and supply of grooved pins

as a professional grooved pins, needle rollers, tapered rollers manufacturer, exporter, supplier and factory in china.We focus stable high quality and professional service as well as reasonable price. supported by our very strong team. we are the right company to supply our customers with very stable high quality products, cylindrical roller, needle roller, tapered roller and professional service.

We are exporting more than 70% of our products, cylindrical rollers, needle rollers, tapered rollers to both Europe and USA, the business roller has been widely used in engineering machinery, machine tool, textile, printing machine, automation equipment and machining center. With enough stocks of more than 10 million pieces, we can always meet your demands at any time.

Advantages of grooved pins

Withstand severe shock/vibration, even with axial displacement. Solid construction stronger than spring pins. Different groove types for a wide range of applications, require only a straight drilled or molded hole,reduce assembly steps. driven with hammer, air cylinder or hydraulic press. easy installation and quick assembly, removable and reusable

all stainless and brass dowels are generally non-magnetic and corrosion resistant, however, they are not very hard and can be bent or dented easily. hardened ground Alloy Steel Dowel Pins do not bend, dent, or break very easily because they are case hardened to Rockwell HRC 60 and have a core hardness from HRC 58-65..

alloy dowel pins are excellent for applications where high strength is required. though these pins are not corrosion resistant they can be coated with a black oxide finish to help reduce their tendency to rust.
