we can be offered confirming to world standards as DIN 5402, IS 4217 and all equivalent international standards. We can also give rollers in G5, G3, G2 classes.
tolerance grade(µm) | diameter changes(µm) | average diameter vibration Dwmp(µm) | circular deviation(max) | diameter changes VDmpmax(µm) | length tolerance(µm) | |||||
G2 | 2 | 0/-2,-1/-3,-2/-4,-3/-5, -4/-6,-5/-7, -6/-8,-7/-9,-8/-10 | 1 | 1 | <0.20 | |||||
G3 | 3 | 0/-3,-1.5/-4.5, -3/-6,-4.5/-7.5, -6/-9,-7/-10 | 1.5 | 1.5 | <0.20 | |||||
G5 | 5 | 0/-5,-3/-8 ,-5/-10 | 2.5 | 2.5 | h13 | |||||
total | 3 precision needle rollers, needle roller bearing pins |
---|

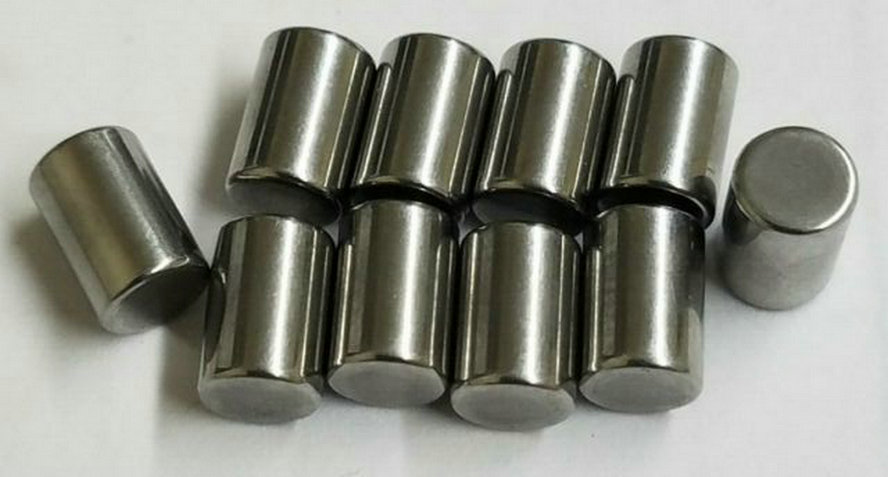

Tolerance grade(G2) needle rollers: diameter changes(µm) 1 the average diameter vibrationwmp(µm)0/-2,1/-3,-2/-4, -3/-5,-4/-6,-5/-7, -6/-8,-7/-9,-8/-10 circular deviation(max)1 diameter changes VDmpmax(µm) 1 Length Tolerance(mm) <0.20
Tolerance grade(G2) needle rollers: diameter changes(µm)3 the average diameter vibrationwmp(µm) 0/-3,-1.5/-4.5,-3/-6,-4.5/-7.5,-6/-9,-7/-10 circular deviation(max)1.5 diameter changes VDmpmax(µm) 1.5 Length Tolerance(µm) <0.20
Tolerance grade(G2) needle rollers: diameter changes(µm)3 the average diameter vibrationwmp(µm) 0/-5,-3/-8,-5/-10 circular deviation(max)2.5 diameter changes VDmpmax(µm) 2.5 Length Tolerance(µm) h13
yes,we can, but the price is very expensive.
automotive needle rollers are roller bearing with cylindrical rollers. these needle roller bearing are thin and long in relation to their diameter have specially designed low cross section. the bearings have a high load carrying capacity and are extremely suitable for bearing arrangements where radial space is less or limited.
we develop new products and technologies to better our service and solution for customers. Our talent team members back up the salesperson to give quality service to customers. We welcome all customers give us a call for all products issues at any given time to experience all products.
In response to industry's ultimate need to produce more with less, we have combined its knowledge and experience with the latest technology to develop solutions for your specific conditions.
Whether your goal is to design equipment that provides more customer value, or to increase overall profitability, with experience and expertise you're likely to find a real solution
