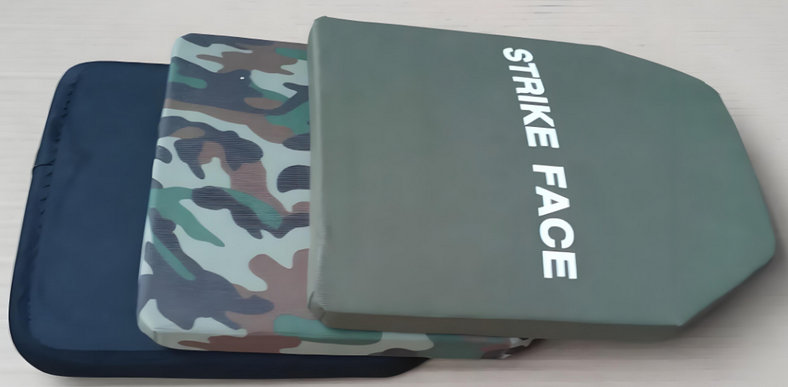

YDTech® suppliers of SiC bulletproof boards,silicon carbide strike face body armor, SiC handheld riot shield, SiC rifle plates! manufacturers of silicon carbide (SiC) plug-in board, SiC ceramic body armors, ceramic body armors, ballistic plates in china.

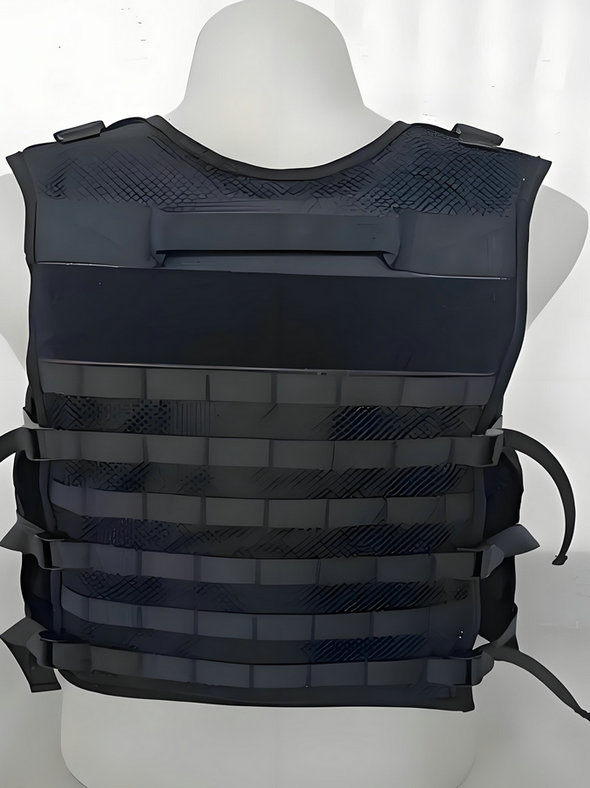

your armor could save your life, so know it like the back of your hand. Utilizing a unique molding technique and super-strong silicone carbide ceramic this ballistic plate backbone is on the bleeding edge of body armor. This heavy-duty material combination ensures maximum durability and protection.

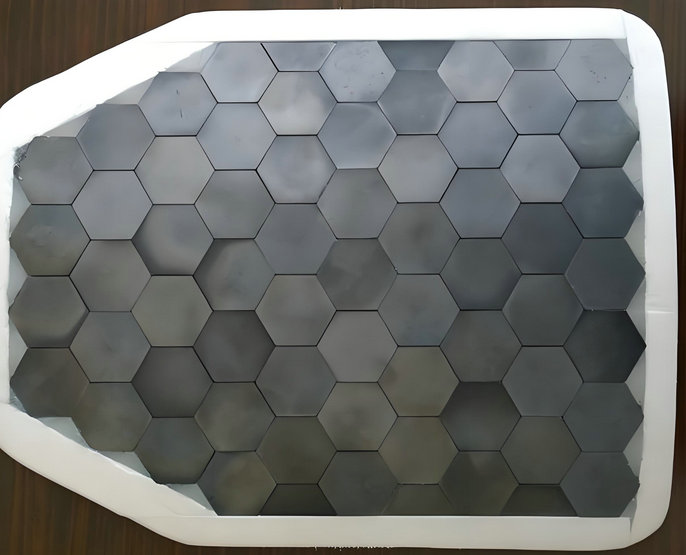

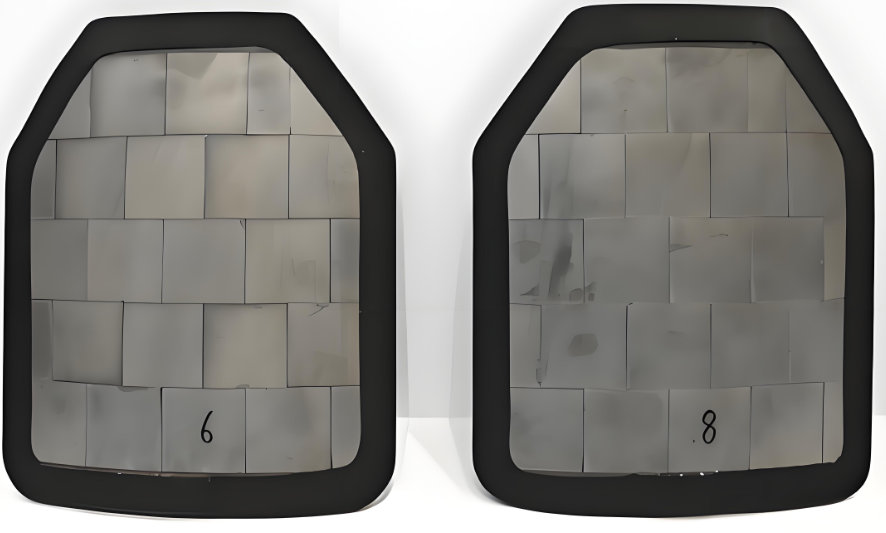

silicon carbide (SiC) ballistic plates are advanced armor materials designed to provide protection against ballistic threats, such as bullets and shrapnel. Made from silicon carbide, a very hard and lightweight ceramic, these plates are often used in personal body armor, vehicle armor, and protective gear for military and law enforcement applications.

despite offering uncompromising protection, These impressive standards put less strain on the body, helping reduce the weight of your rig and increase mobility. when struck by a bullet the ceramic elements shatters into potentially dangerous fragments, absorbing kinetic energy in the process. To combat this our plates incorporate a special polyurethane coating, ensuring all-ceramic fragments remail safely contained and helping absorb additional shock.

these plates are resistant to wear and environmental factors, making them suitable for harsh conditions. some SiC plates are designed to withstand multiple impacts, increasing their effectiveness in combat situations. silicon carbide (SiC) ballistic plates Often combined with other materials to improve performance and manage weight.

Applications of Silicon carbide (SiC) ballistic plates: used in soldier gear, vehicles, and aircraft. worn by police and SWAT teams for protection during high-risk operations. increasingly available for personal protection in civilian applications. SiC ballistic plates are an important component in modern protective gear, balancing safety, weight, and flexibility.

chemistry properties for precision ceramics silicon carbide SiC bulletproof boards

Silicon carbide covalent bond is extremely strong, at high temperature still has high strength bonding, this structural characteristics give silicon carbide ceramics excellent strength, high hardness, wear resistance, corrosion resistance, high thermal conductivity, good thermal shock resistance and other properties, at the same time, silicon carbide ceramics are moderately priced, cost-effective, is considered to be one of the most promising high-performance armor protection materials.

physical properties for precision ceramics silicon carbide SiC bulletproof boards

The demand for high-performance silicon carbide ceramics for armor protection materials has also increased. Since silicon carbide is a typical covalently bonded compound, coupled with its low diffusion coefficient, it is difficult to densify by conventional sintering methods. Therefore, it is necessary to obtain dense silicon carbide ceramics by adding some sintering additives to reduce the surface energy or increase the surface area, as well as using a special process. At present, the sintering process of silicon carbide ceramics includes reaction sintering, hot press sintering, pressureless sintering and hot isostatic sintering.

thermal properties for ceramics silicon carbide SiC bulletproof boards

Silicon carbide ceramics have excellent ballistic resistance, in the existing special ceramic material system, cost-effective advantages are obvious, is considered to be one of the most promising high-performance bulletproof armor materials, in recent years in individual equipment, army armored weapon platform, armed helicopter and police, civilian special vehicles and other armored protection fields have been more and more widely used.

SiC is known for its exceptional hardness, which helps it effectively dissipate the energy of projectiles. compared to traditional steel armor, SiC plates are lighter, enhancing mobility for the wearer.

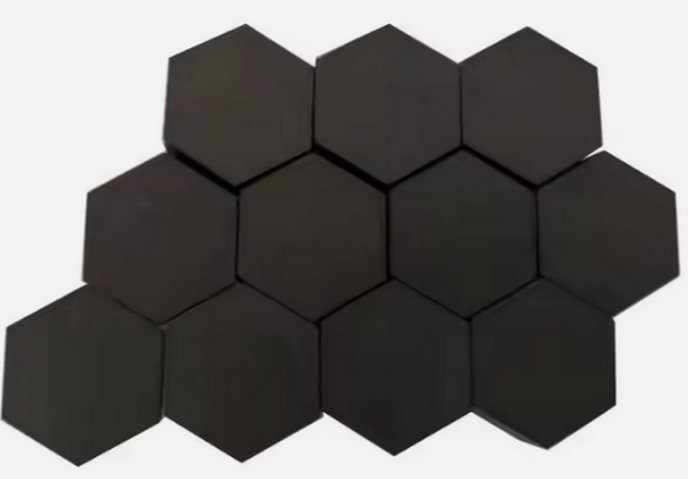

Integral silicon carbide special-shaped parts, such as integral silicon carbide multi-curved bulletproof insert plate, integral sintered silicon carbide ceramic bulletproof helmet, and other armor material intermediates continue to appear, which provides a new direction for the application research of individual protective composite armor.

designed to mimic the human body, our 3D Multi-Curved design incorporates both horizontal and verticle curvature. The results in better overall comfort, mobility, and weight distribution – making your vest feel lighter and more accommodating. silicon carbide ceramic bulletproof boards offer a combination of strength, lightweight design, and versatility, making them a popular choice in the field of ballistic protection.

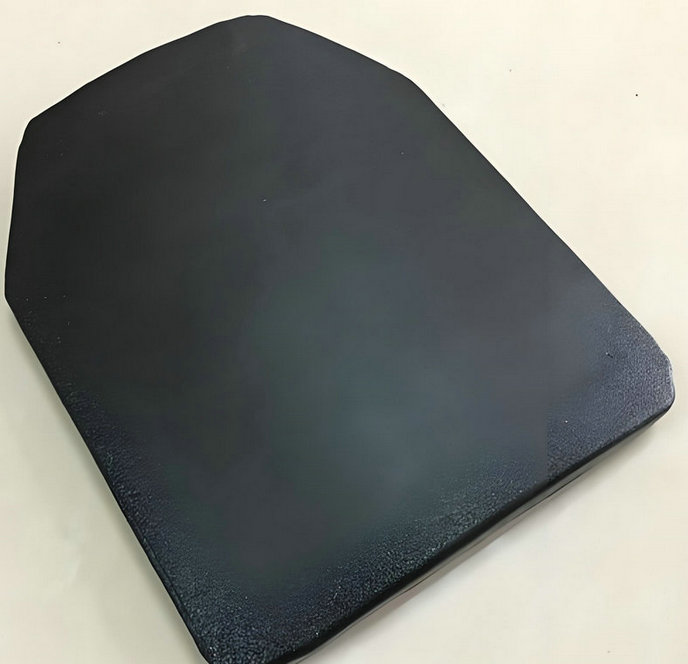

Silicon carbide (SiC) ceramic bulletproof boards are protective panels made from silicon carbide, designed to absorb and dissipate the energy from ballistic impacts. These boards are commonly used in various applications where high levels of protection are required, such as military vehicles, armored personnel carriers, and even in some civilian contexts.

With the continuous improvement of the damage capacity of anti-armor weapons and ammunition, special ceramic materials with high strength, high hardness, low density, corrosion resistance, high wear resistance and other characteristics are widely used in military weapons armored platforms such as tanks and armored vehicles and police and civilian special protection projects, and play an increasingly important role with high anti-penetration and armor-piercing protection coefficients, and special ceramics have become one of the indispensable materials for the current composite armor system.

The high hardness, high compressive strength and high elastic modulus of silicon carbide provide excellent protection capabilities that are conducive to destroying high-velocity projectiles, and compared with traditional steel protective plates, bulletproof ceramic composite armor composed of silicon carbide ceramic panels and advanced composite backplates has low price and light weight, and can reduce weight by more than 60%.
