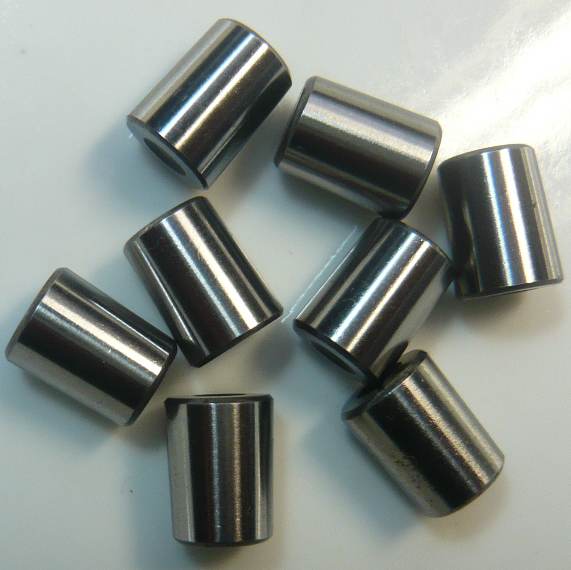

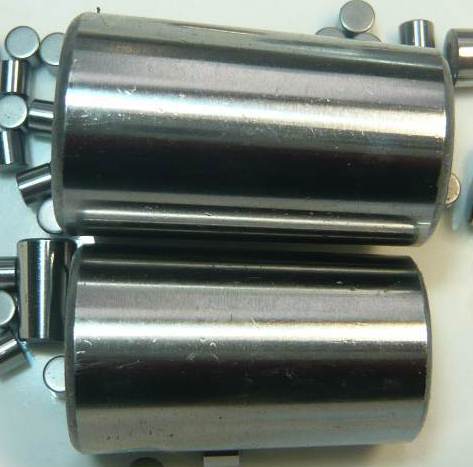

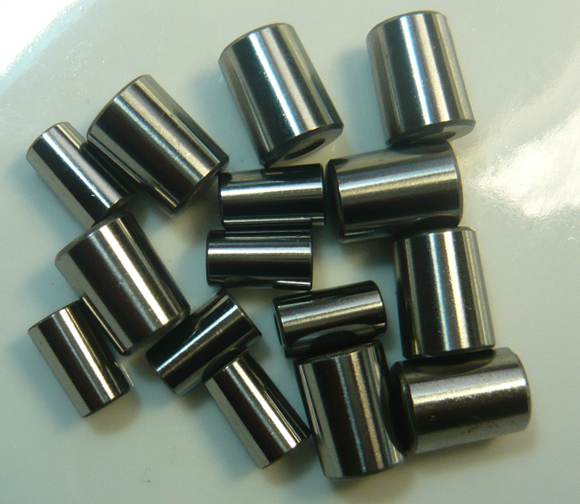

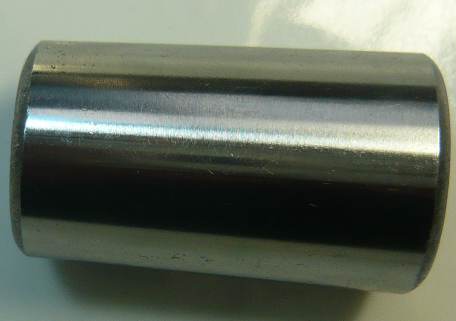

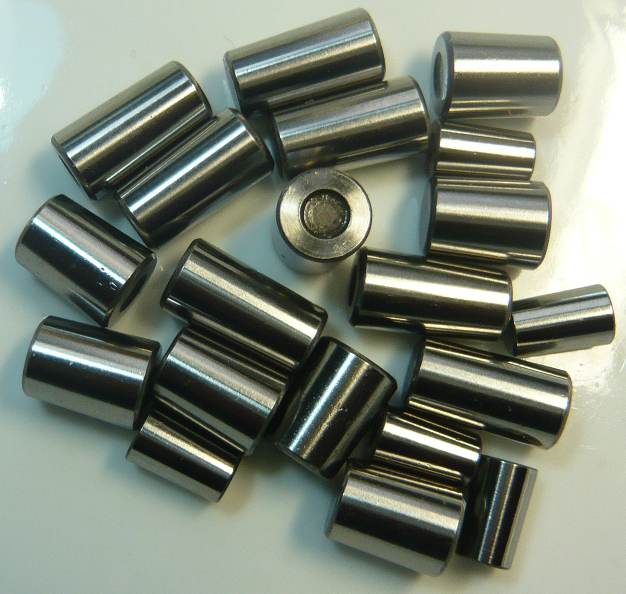

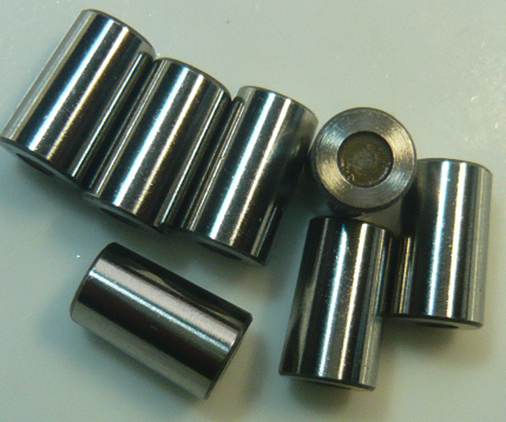

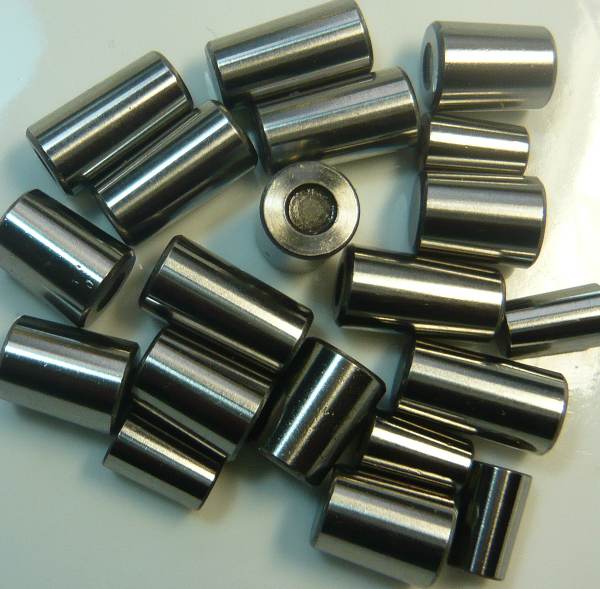

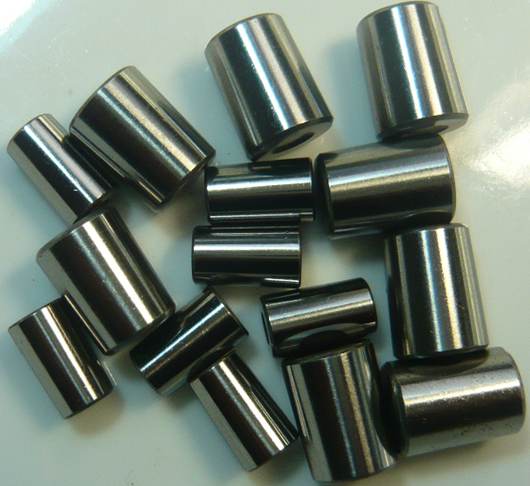

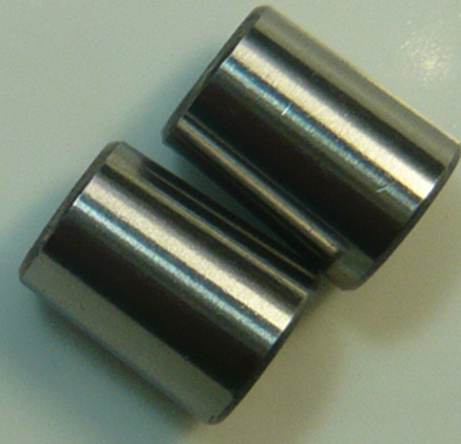

YDTech® MANUFACTURER of tapered roller bearing rolling elements(tapered rollers loose)! Supplier of precision tapered rollers with small^large end face in china.

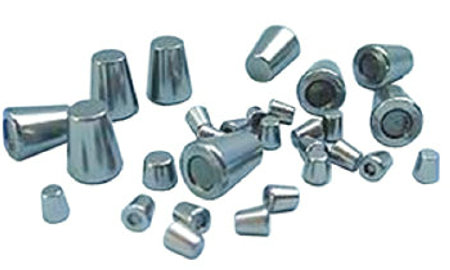

tapered rollers as an rolling elements for tapered roller bearing. bearings consist of components: inner/outer ring; the cup; the tapered rollers; and the cage.
tapered roller gauge value in the same batch, with a maximum average diameter of a single plane with the smallest average diameter of a single plane, the difference between its average diameter of a single plane.
SDw : basis of the end surface of a roller from the roller at 1.2 times the maximum chamfer dimensions, and the center line of the circumference of the roller axis, each pitch on this circumference of a radial axial plane of maximum and minimum distance poor.
tapered rollers radius of basis end faces
SR: in either inside a roller axial plane, roller cone surface intersection of the two Plain line extension line is center of the sphere to the distance between the intersection and reverie corners to make a spherical radius, spherical roller benchmark is part of the end face , the radius of the sphere is the basis of the end face of the radius, also known as ball base radius.
regulation values of tapered rollers
In the middle of the length of the roller radial plane, the average diameter of the roller single plane deviates from the nominal diameter, the diameter of The lower deviation defined deviation range.

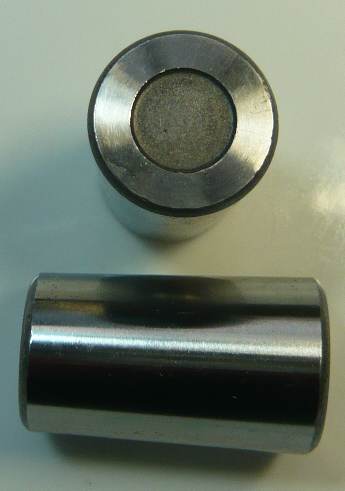

tapered rollers nest hole diameter rollers allow the range of 40% to 55% of the diameter, the other dimensions required by the provisions of Table 6, the cavity clean and free of debris, regular shape, no obvious defects.
tolerance and grade of tapered rollers (tapered bearing rollers)
| grade | Dw/mm | geometric tolerance | cone angle deviation | change value of batch sizes | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| exceed | to | VDwpmax | ��Cirmax | SDwmax | ��2φ upper deviation | ��2φlower deviation | VDwLmax | V2φmax | ||
| G0 | - | 10 | 0.3 | 0.3 | 1.0 | +0.6 | -0.6 | 1.0 | 0.6 | |
| 10 | 18 | 0.3 | 0.3 | 1.0 | +0.7 | -0.7 | 1.0 | 0.7 | ||
| 18 | 30 | 0.4 | 0.4 | 2.0 | +0.7 | -0.7 | 1.0 | 0.7 | ||
| G1 | - | 10 | 0.5 | 0.5 | 2.0 | +1.0 | -1.0 | 1.0 | 1.0 | |
| 10 | 18 | 0.5 | 0.5 | 2.5 | +1.0 | -1.0 | 1.5 | 1.0 | ||
| 18 | 30 | 0.8 | 0.8 | 3.0 | +1.5 | -1.5 | 2.0 | 1.5 | ||
| G2 | - | 10 | 1.2 | 1.2 | 3.0 | +2.0 | -2.0 | 2.0 | 2.0 | |
| 10 | 18 | 1.2 | 1.2 | 4.0 | +2.0 | -2.0 | 2.5 | 2.0 | ||
| 18 | 30 | 1.5 | 1.5 | 5.0 | +2.5 | -2.5 | 3.0 | 2.5 | ||
| 30 | 50 | 2.0 | 2.0 | 6.0 | +3.0 | -3.0 | 3.0 | 3.0 | ||
| G3 | - | 10 | 2.0 | 2.0 | 5.0 | +2.0 | -2.0 | 3.0 | 3.0 | |
| 10 | 18 | 2.0 | 2.0 | 6.5 | +3.0 | -3.0 | 3.0 | 3.0 | ||
| 18 | 30 | 3.0 | 3.0 | 8.5 | +4.0 | -4.0 | 5.0 | 5.0 | ||
| 30 | 50 | 3.0 | 3.0 | 10.0 | +5.0 | -5.0 | 5.0 | 5.0 | ||
| 50 | 80 | 4.0 | 4.0 | 12.0 | +5.0 | -5.0 | 5.0 | 5.0 | ||
| total | 15 tapered roller bearing rollers | |||||||||
surface roughness of tapered rollers (tapered bearing rollers)
| grade | rolling surface (Ramax) | basis of end face (Ramax) | other, chamfer (Ramax) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| G0 | 0.04 | 0.10 | 1.25 | |||||||
| G1 | 0.08 | 0.125 | 1.25 | |||||||
| G2 | 0.125 | 0.16 | 2.5 | |||||||
| G3 | 0.16(Dw<=30mm) | 0.32 | 2.5 | |||||||
| G3 | 0.25(Dw>30mm) | 0.32 | 2.5 | |||||||
| total | 15 tapered roller bearing rollers | |||||||||
ball base surface of tapered rollers (tapered bearing rollers)
| base grade | SR(mm) | surface roughness | ��SR | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| from | to | max | upper deviation | lower deviation | ||||||
| SR12 | - | 200 | 0.12 | 0 | -5 | |||||
| 200 | 400 | 0 | -5 | |||||||
| SR16 | - | 200 | 0.16 | 0 | -10 | |||||
| 200 | 400 | 0 | -15 | |||||||
| SR32 | - | 200 | 0.32 | 0 | -15 | |||||
| 200 | 400 | 0 | -30 | |||||||
| SR40 | - | 200 | 0.40 | 0 | -15 | |||||
| 200 | 400 | 0 | -40 | |||||||
| total | 15 tapered roller bearing rollers | |||||||||
straightness of tapered rollers (tapered bearing rollers)
| Dw | straightness | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| exceed | to | G0 | G1 | |||||||
| - | 30mm | +0.5um | +1um | |||||||
| 30mm | 50mm | - | +2um | |||||||
| total | 15 tapered roller bearing rollers | |||||||||
V-block measurement for roundness of tapered rollers
| angle | wave numbers | |||||||||
| 3 | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 19 | 21 | |
| 60°C | 3 | - | - | 3 | - | - | 3 | - | - | 3 |
| 90°C | 2 | 2 | - | - | 2 | 2 | - | - | 2 | 2 |
| 120°C | 1 | 2 | 2 | 1 | - | - | 1 | 2 | 2 | 1 |
| total | 3 tapered rollers (loose tapered roller bearing rollers) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
