YDTech™ manufacturer of RN cylindrical roller bearings! needle roller bearings, compound bearings! supplier of rolling element bearings(RN ) needle roller bearings, compound bearings in china

RN cylindrical roller bearings are a type of cylindrical roller bearing that have a non-ribbed inner ring and two ribbed outer rings. The RN stands for "non-ribbed inner ring and two ribbed outer rings."

RN cylindrical roller bearings are designed to be used as a floating bearing, which means that they can move axially to compensate for thermal expansion or contraction of the shaft or housing. The non-ribbed inner ring allows for axial movement of the shaft, while the two ribbed outer rings provide axial stability.

RN cylindrical roller bearings are commonly used in applications where there is a need to accommodate axial displacement of the shaft or housing, such as in papermaking machines and printing machines. They are also used in applications where a compact design is required.

RN cylindrical roller bearings are available in different sizes and designs, and can be supplied with or without a cage. They are often used in pairs or sets to accommodate high radial loads and ensure proper axial positioning.

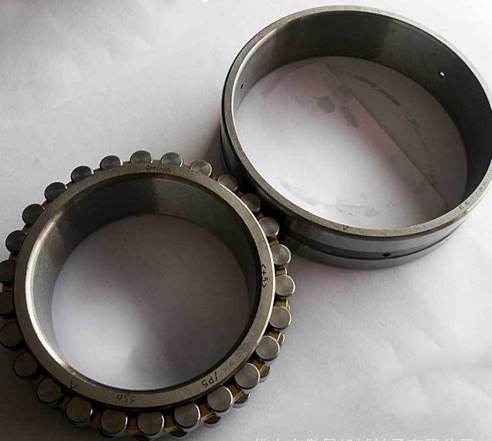

cylindrical roller bearings are a type of rolling-element bearing that use cylinders (or rollers) with a slightly modified shape to reduce friction between rotating and stationary components. Unlike needle roller bearings, which have long, thin cylindrical rollers, cylindrical roller bearings have short, thick cylinders that are slightly crowned or tapered to reduce stress concentrations.

cylindrical roller bearings are designed to handle high radial loads, and in some cases, moderate axial loads as well. they are commonly used in applications such as machine tools, rolling mills, electric motors, pumps, and gearboxes.

single row cylindrical roller bearings: these bearings have a single row of rollers, and are capable of handling light to medium radial loads.

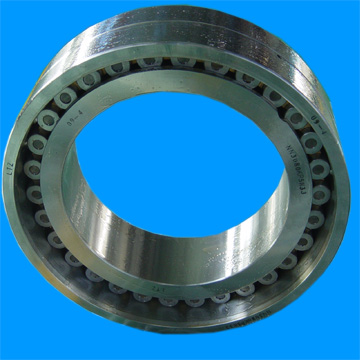

double row cylindrical roller bearings: these bearings have two rows of rollers, and are capable of handling heavier radial loads than single row bearings.

full complement cylindrical roller bearings: these bearings have no cage or retainer, allowing for maximum roller capacity and load carrying capability.

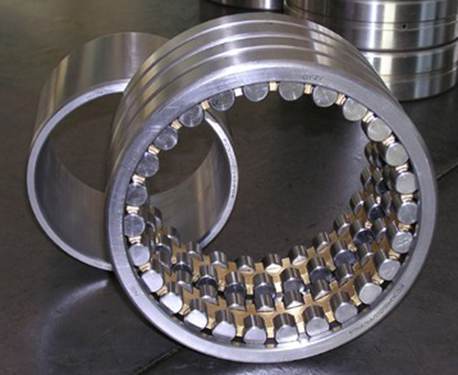

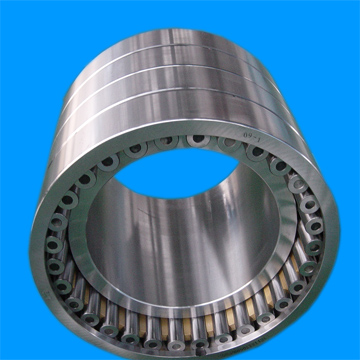

multi-row cylindrical roller bearings: these bearings have more than two rows of rollers, and are used in extremely heavy-duty applications, such as large industrial gearboxes.

cylindrical roller bearings are a reliable and versatile type of bearing that can handle a wide range of loads and speeds.

(NJ,NU,NUP,N,RN,RNU,NF,NH,NCF,NN,NNU)

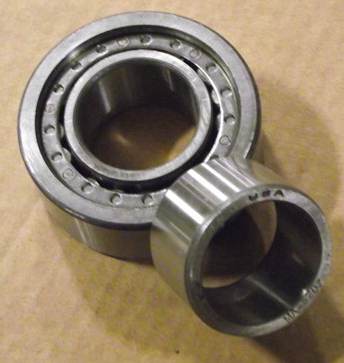

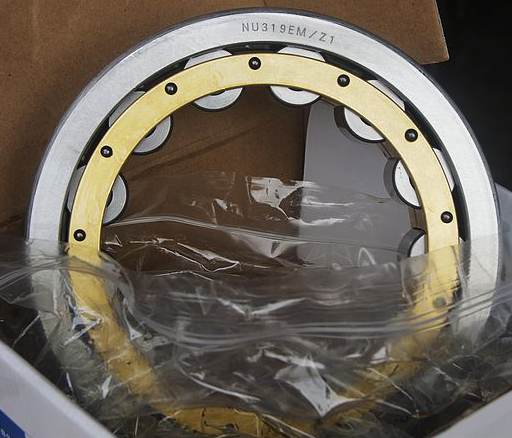

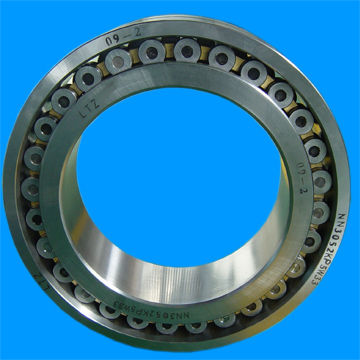

NU(NNU)NU1000, NU200, NU2200, NU300, NU2300, NU400 cylindrical roller bearing (double row) has double capped edges on outer ring and without capped edge on inner ring.
NJNJ200, NJ2200, NJ300, NJ2300 ,NJ400 cylindrical roller bearing has double capped edge on outer ring and single capped edge on inner ring.
NUPNUP200, NUP2200, NUP300, NUP2300 cylindrical roller bearing with double capped edges on the outer ring & with capped edge on one side of the inner ring, as well as with inner ring loose rib on the other side of the inner ring.

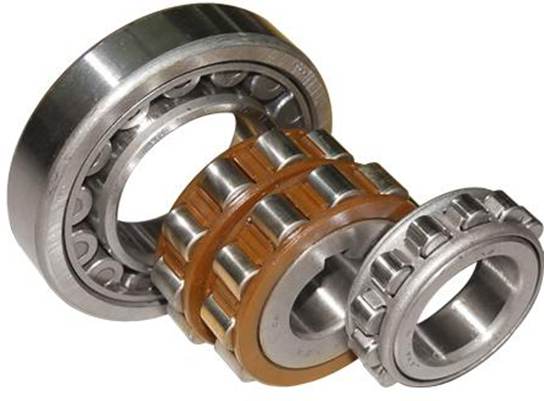

N(NN)N1000, N200, N2200, N300, N2300, N400 cylindrical roller bearing (double row) with outer ring without capped edge on inner ring.
NFNF200, NF300, NF2300 cylindrical roller bearing with the single capped edge on outer ring & double capped edges on inner ring.
NHNH200, NH300, NH400, NH2200, NH2300 cylindrical roller bearing with the single capped edge on inner ring with oblique angle ring.
RNURNU1000, RNU200, RNU300 cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring.
RNRN200, RN300 cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring.
Ecylindrical roller bearing are same as the dimensions of the ordinary type. But the load carrying capacity is increased accordingly due to the increasing of the diameter of rollers, the length and the number of rollers.
cylindrical roller bearings (NJ,NU,NUP,N,RN,RNU,NF,NH,NCF,NN,NNU)
