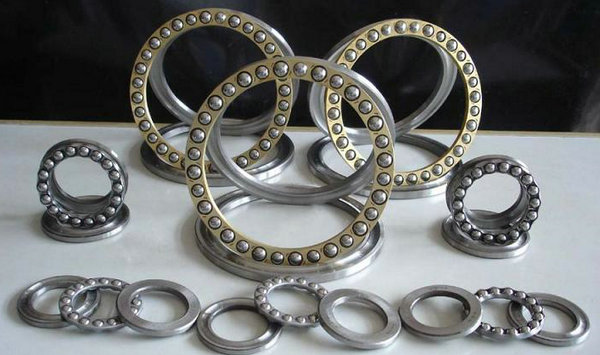

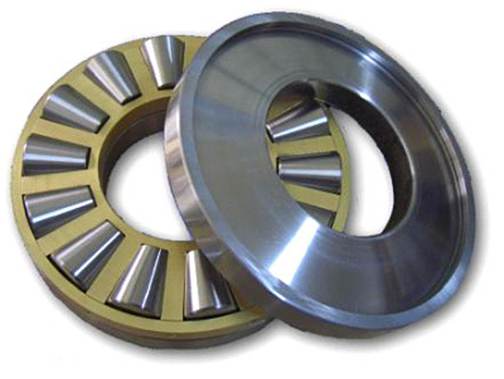

YDTech® manufacturer of thrust bearings for cylindrical rollers, tapered rollers! supplier of parallel needle rollers, spherical rollers or ball thrust bearings in china.

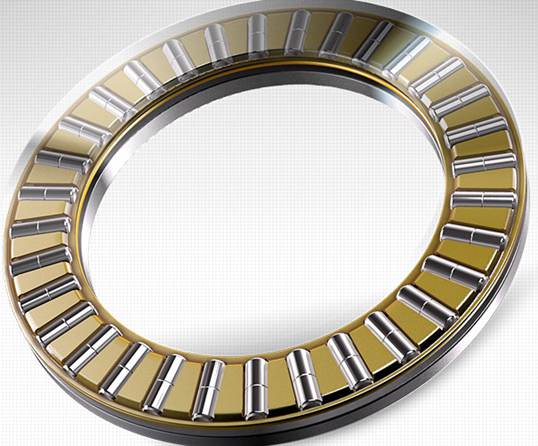

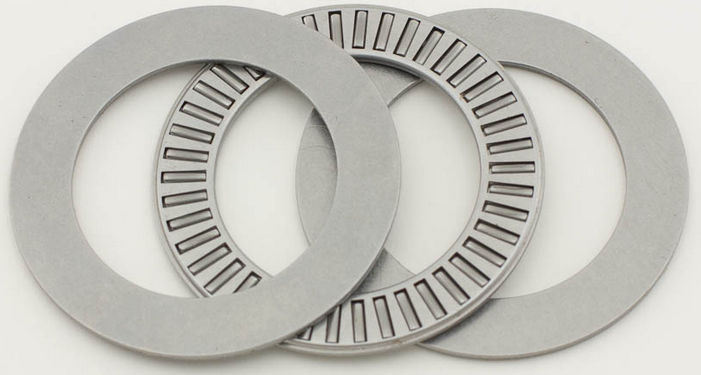

thrust cylindrical roller bearings are a type of roller bearing that is designed to handle axial loads in a single direction. They have cylindrical rollers that are arranged parallel to the axis of rotation and guided by two thrust collars, which can be either integral or separable from the bearing outer and inner rings. thrust cylindrical roller bearings are available in different configurations, such as single direction and double direction. Single direction thrust cylindrical roller bearings can only handle axial loads in one direction, while double direction thrust cylindrical roller bearings can handle axial loads in both directions.

thrust cylindrical roller bearings are commonly used in applications where there is a need to support axial loads, such as in machine tool spindles, automotive transmissions, and heavy machinery. They are available in various sizes and designs, including different types of thrust collars, and can be supplied with or without a cage, depending on the application requirements.

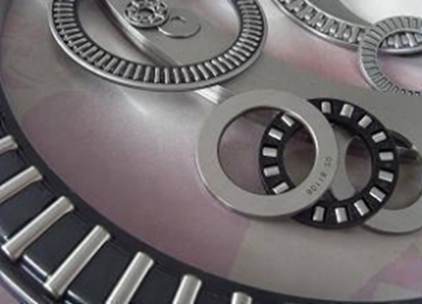

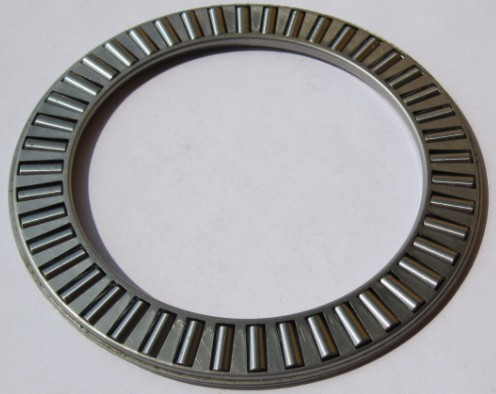

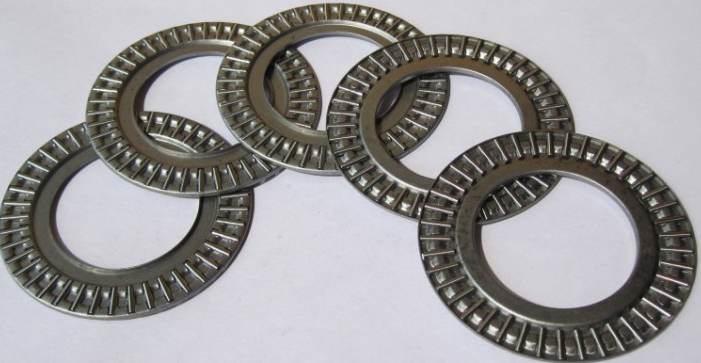

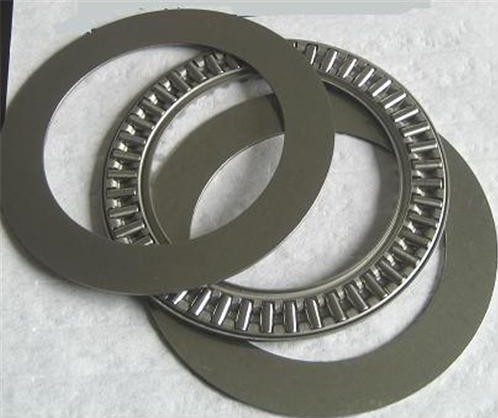

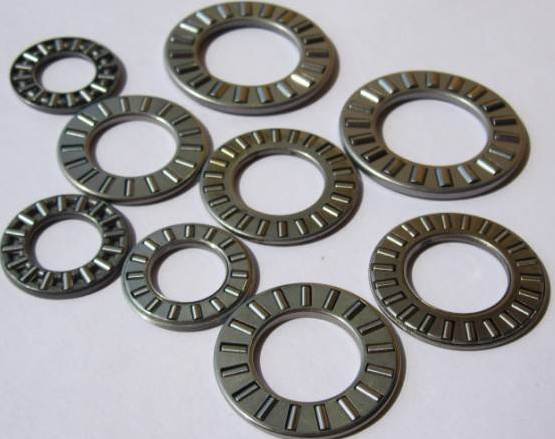

thrust needle roller bearings in applications where the faces of adjacent machine components can serve as raceways, needle roller thrust bearings will take up no more space than a conventional thrust washer. They can accommodate axial loads acting in one direction only.

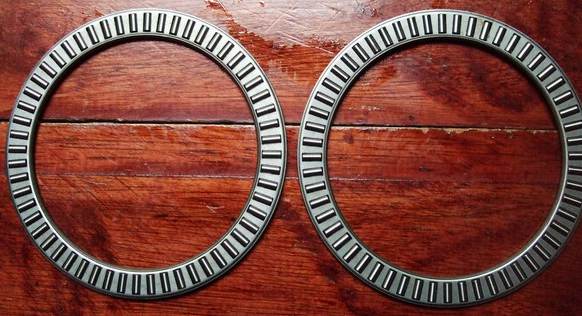

the thrust needle roller bearing or thrust parallel roller bearing is such a manner that the needles rollers with cage are set up in the space between rollway and collar and the cage reliably guides and clamps a lot of rolling bodies. There is a little difference among the rolling bodies in the same set.

the thrust needle roller bearing or thrust parallel roller bearing is the one only supporting the axial load in one direction. It is used as the bearing allocation having the good rigidity and axial small space.

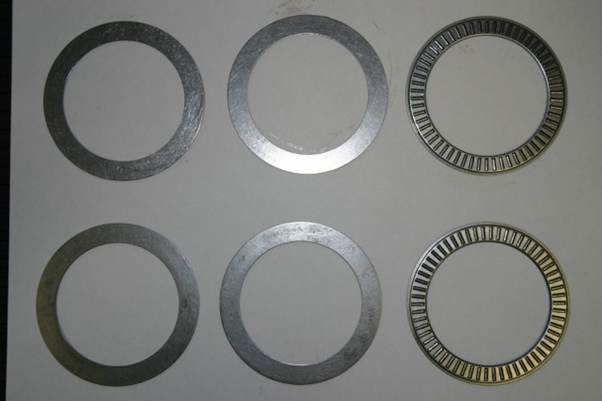

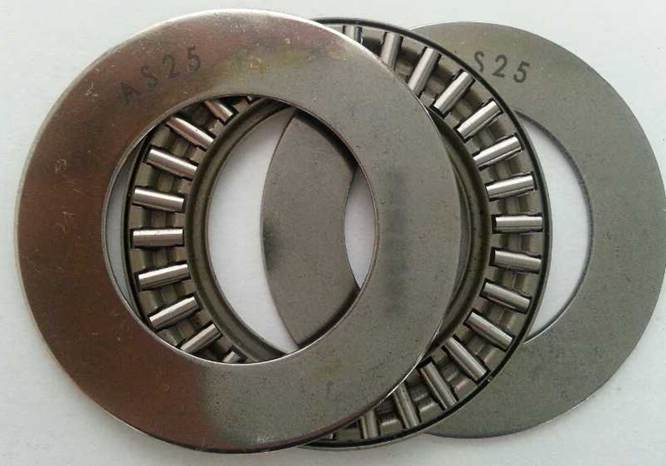

series AS thrust collar is punched with the high quality steel spring plate in thickness of 1mm and quenched and polished. When the surface of the adjacent parts can not be acted as rollway, although it has a good rigidity, Series AS collar shall play its full action.

series GS, WS, LS thrust collars are made of bearing steel with the quenching process. The outer surface of GS seat ring and the inner surface of WS shaft ring are ground. Series LS thrust collar is an economic product with machining the outer and inter surfaces.

grades of thrust parallel cylindrical roller bearings
