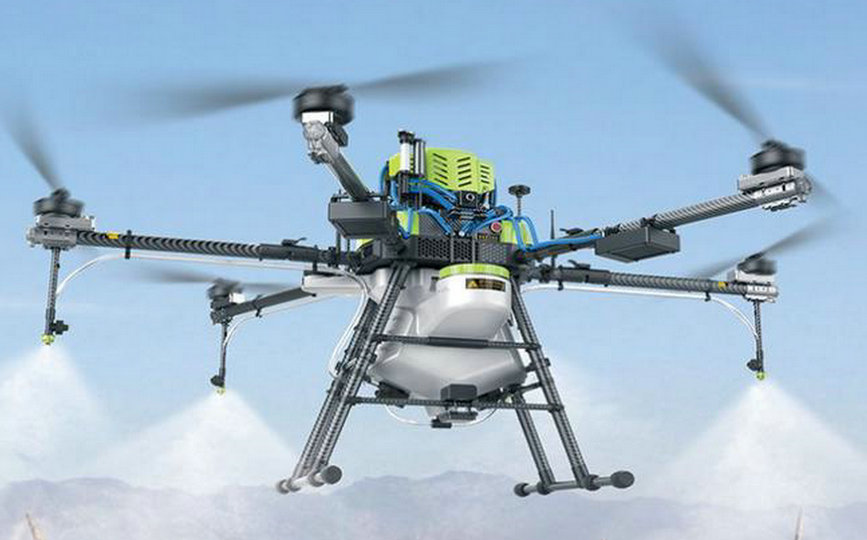

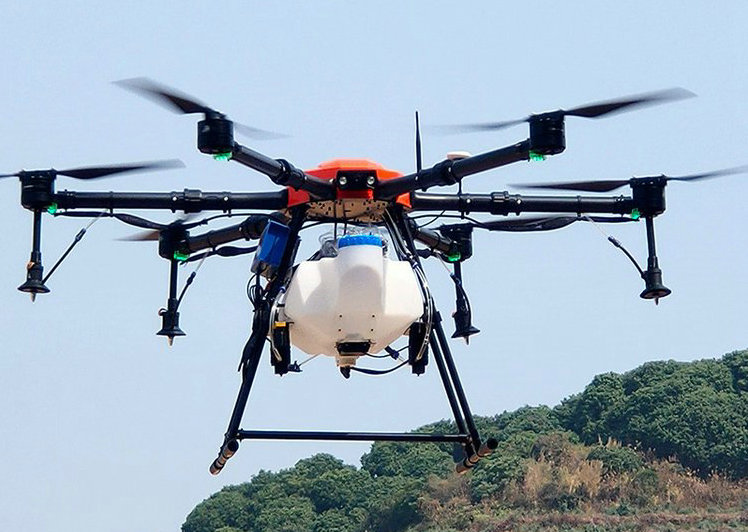

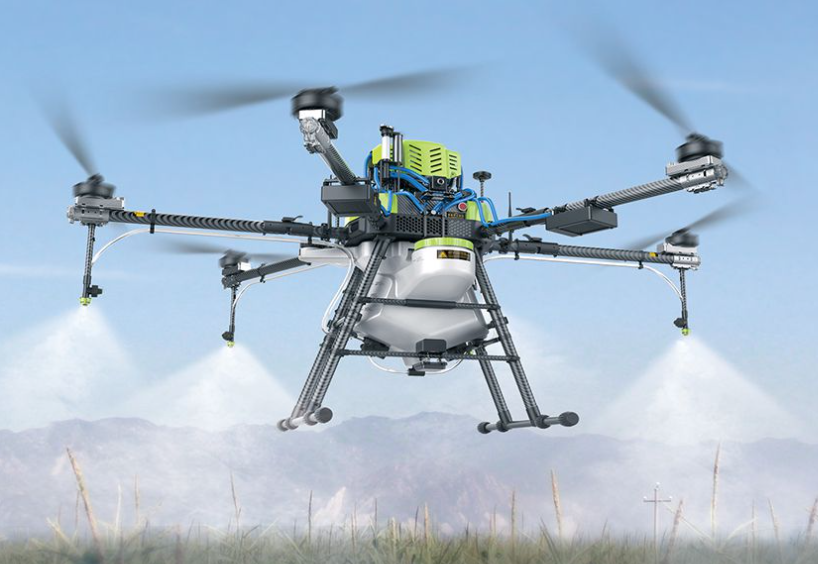

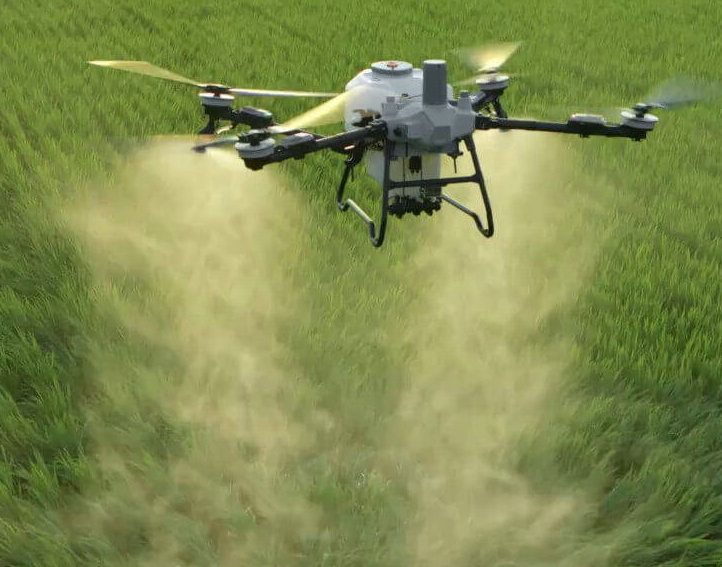

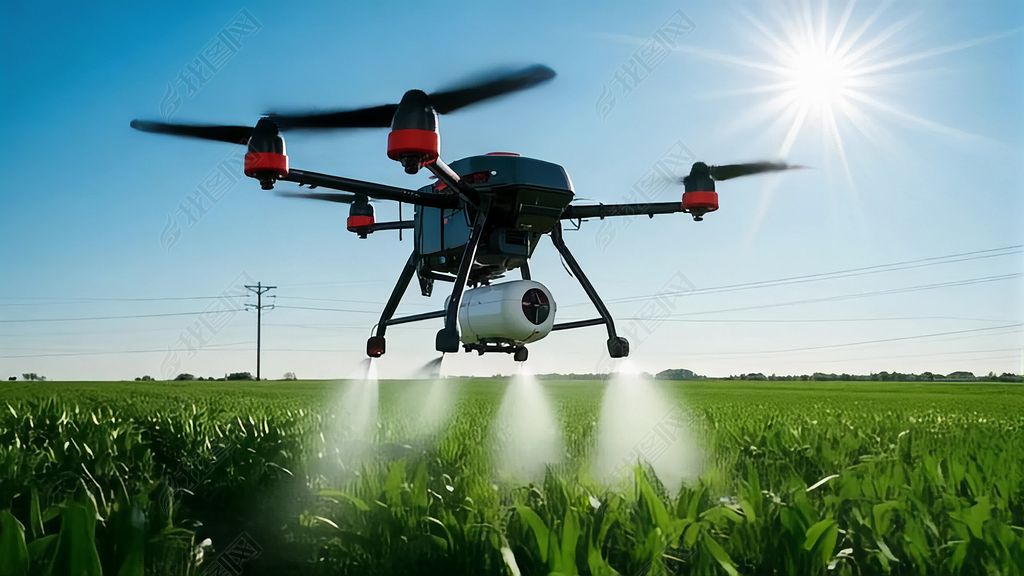

agriculture spraying drones, also known as agricultural drones or crop-dusting drones, are unmanned aerial vehicles equipped with spraying systems designed for the efficient application of fertilizers, pesticides, herbicides, and other agricultural inputs over crops. these drones have become increasingly popular in modern agriculture due to their ability to offer precision and efficiency in the application of agrochemicals.
operators can control the drone remotely, adjusting parameters such as spray rate and flight path. some advanced models also offer real-time monitoring of the spraying process through cameras and sensors.
some agriculture drones come with additional sensors for collecting data related to crop health, moisture levels, and other factors. this data can be used for precision farming practices.drones enable farmers to apply chemicals with precision, targeting specific areas of a field as needed. this can result in more efficient use of resources and reduced environmental impact.
agriculture drones can cover large areas quickly, reducing the time required for spraying compared to traditional methods. this can lead to cost savings in labor and fuel.reduced Environmental Impact: Precision application helps minimize the amount of chemicals used, reducing the environmental impact associated with conventional spraying methods.drones can access difficult-to-reach or uneven terrain that may be challenging for traditional agricultural machinery.
agriculture drones are equipped with specialized spraying mechanisms, including pumps, nozzles, and tanks, that allow for the precise and controlled release of agricultural chemicals. many agriculture spraying drones are equipped with GPS technology, enabling them to follow predefined flight paths with high accuracy. this helps in ensuring even and targeted application of chemicals across the entire field.
types | AD-50 | ||||||||
weight | 50KG | ||||||||
maximum take-off weight | 90kg(spraying),100(sowing) | ||||||||
wheelbase | 2188 mm | ||||||||

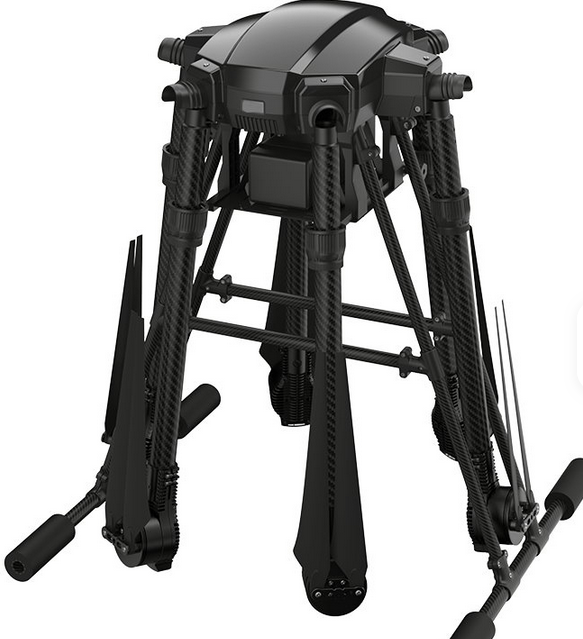

size | 2800mm × 3150mm × 780mm(arm deployed), 1125mm × 750mm × 850mm(arm folds) | ||||||||
RTK/GNSS | RTK:GPS L1/L2,GLONASS F1/F2,BeiDou B1/B2,Galileo E1./E5 GNSS:GPS L1,GLONASS F1,Galileo E1,BeiDou B1 | ||||||||
RTK precision | horizontal (+/-)10cm, vertical (+/-)10cm | ||||||||
flight radius | 2000m | ||||||||
wind speed | 6m/s | ||||||||
motor power | 4000 W/rotor | ||||||||
propeller | 54 inch | ||||||||
quantity | 8pcs | ||||||||
volume | 40L | ||||||||
load | 50KG | ||||||||
sowing width | 7m | ||||||||
ambient temperature | 0~40C | ||||||||
remote control | 2.4000 GHz~2.4835 GHz, 5.725 GHz~5.850 GHz | ||||||||
effective distance | SRRC:5 km, MIC/KCC/CE:4 km,FCC:7 km | ||||||||
bluetooth | 2.4000 GHz~2.4835 GHz. | ||||||||
Wi-Fi | 2.4000 GHz~2.4835 GHz, 5.150 GHz~5.250 GHz, 5.725 GHz~5.850 GHz. | ||||||||
positioning | GPS+Galileo+BeiDou | ||||||||
battery weight | 12kg | ||||||||
battery capacity | 30000 mAh | ||||||||
battery voltage | 52V | ||||||||
