mapping drones, as survey drones or mapping UAVs (unmanned aerial vehicles), are specialized unmanned aircraft equipped with sensors and cameras designed for the purpose of creating detailed and accurate maps of terrain, landscapes, or structures. survey drones play a significant role in various industries, including cartography, agriculture, construction, environmental monitoring, and urban planning.
mapping drones are equipped with high-quality cameras capable of capturing detailed aerial imagery. Some advanced models may have multispectral or hyperspectral cameras for specialized data collection. survey drones often come with integrated GPS systems that enable precise positioning during flight. This allows for accurate georeferencing of the captured images, essential for creating maps with high spatial accuracy.
mapping drones are capable of autonomous flight, following pre-programmed flight paths to ensure systematic and comprehensive coverage of the target area. this helps in optimizing data collection efficiency. some survey drones are equipped with light detection and ranging sensors, which use laser beams to measure distances and create detailed three-dimensional maps. light detection and ranging is particularly useful for mapping terrain and vegetation.
mapping drones are typically paired with specialized software for processing and analyzing the collected data. This software helps create orthomosaic maps, digital elevation models, and other outputs that are valuable for various applications. in land surveying and cartography, mapping drones are used to create accurate and up to date maps for construction, urban planning, and geographic information systems.
survey drones are employed in precision agriculture for monitoring crop health, assessing field conditions, and creating prescription maps for optimized resource management. mapping drones are used in the construction industry to monitor construction sites, track progress, and create topographic maps for planning infrastructure projects.
survey drones contribute to environmental research by mapping ecosystems, monitoring changes in land cover, and assessing the impact of natural events such as wildfires or floods. mapping drones assist in surveying mining sites, monitoring stockpiles, and creating accurate 3D models of terrain. mapping drones offer a cost-effective and efficient way to collect geospatial data, providing valuable insights for decision-making and planning in various fields. the technology continues to advance, enabling even more sophisticated and precise mapping capabilities.
types | X20P-IR | ||||||||
spectral range | 350~1000nm+7.5~13.5um | ||||||||
high spectral resolution | 1886*1886 pixels | ||||||||

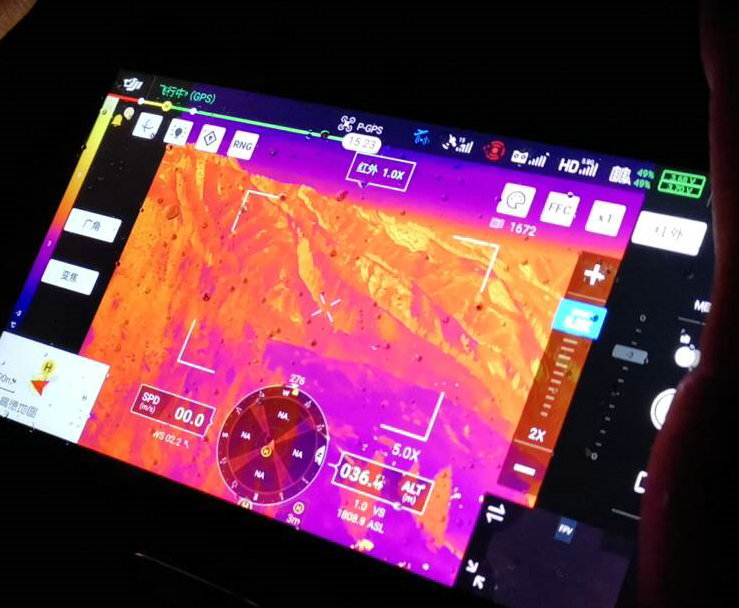

thermal infrared resolution | 640*512 pixel full screen temperature measurement | ||||||||
temperature measurement accuracy | +/-1C (laboratory black body verification) | ||||||||
number of channels | 164 (expandable) | ||||||||

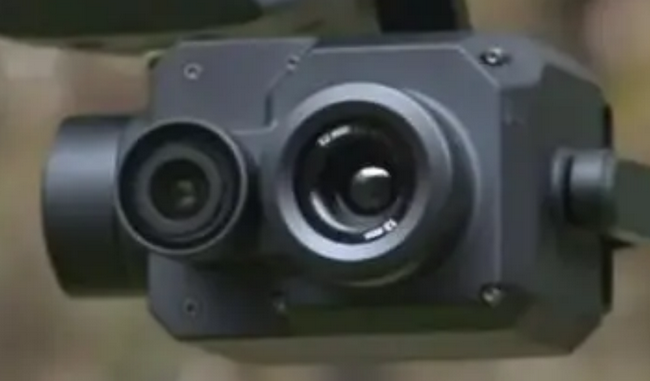

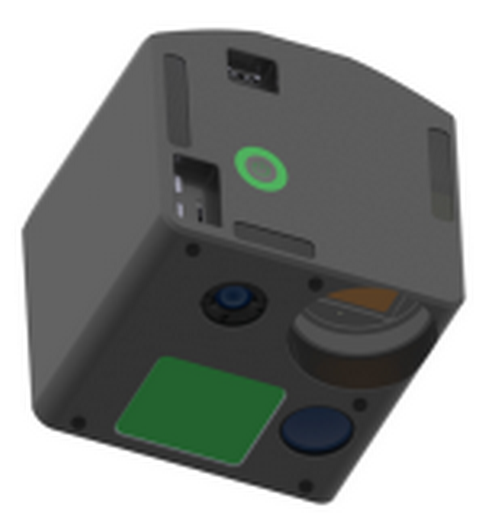

detector | 20 MP hyperspectral CMOS+Vox infrared +3.5MP full array composite integrated detector | ||||||||
imaging method | full array imaging, simultaneous measurement of all channels of hyperspectral, thermal infrared and panchromatic, global shutter | ||||||||
hyperspectral imaging speed | 2 Cubes/s, 1886*1886 pixels/Cube | ||||||||
digital resolution | 12 Bits | ||||||||
pectral output | 168000 Spectra/Cube | ||||||||
optical aray/FOV | 66/35degree | ||||||||
communication Interface | skyport electronic cable interface, 2*GigE, 2*USB, HDMI | ||||||||
storage memory | built-in solid state drive 256G/8G, micro SD | ||||||||

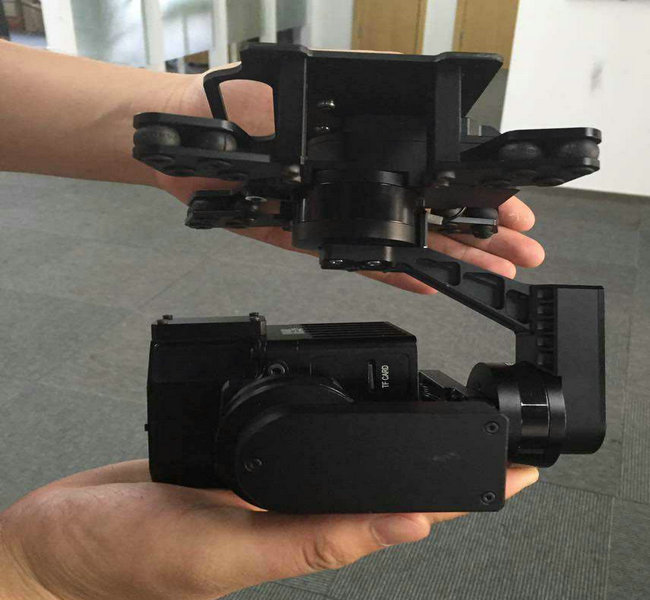

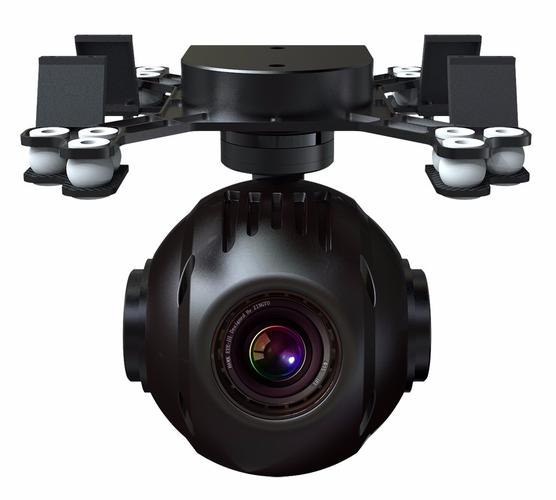

limit range | pitch direction: +/-50 degree, roll direction: +/-90 degree | ||||||||
stabilization range | pitch direction: +/-40 degree, roll direction: +/-45 degree | ||||||||
angle jitter | +/-0.015 degree | ||||||||
trigger control | flight control provides a trigger signal and obtains GPS data simultaneously. | ||||||||
structural weight | integrated brushless gimbal structure, overall weight less than 1.5Kg | ||||||||
flight control | multi-attitude flight modes such as fixed altitude, fixed point, autonomous cruise, one-button takeoff and landing, low voltage protection, automatic return to home, preset no-fly zone, electronic fence | ||||||||
operating temperature | -10~40C | ||||||||
