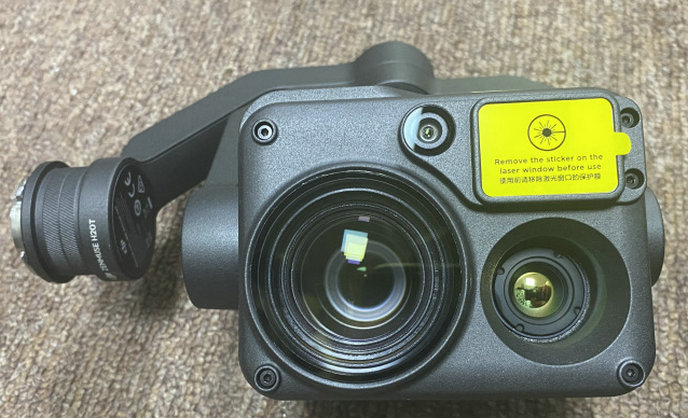

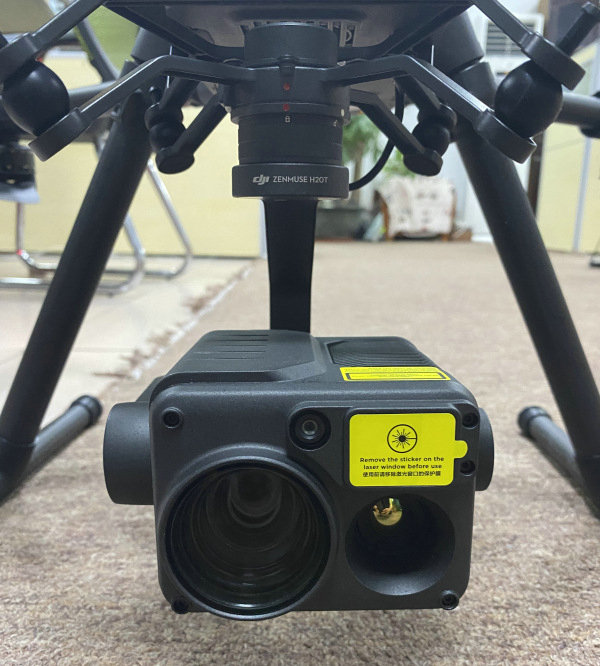

companies of surveying UAVs DJ® with RTK(real time kinematic)camera PTZ, system! suppliers of mapping drones DJ® with best RTK components,camera PTZ, in china.

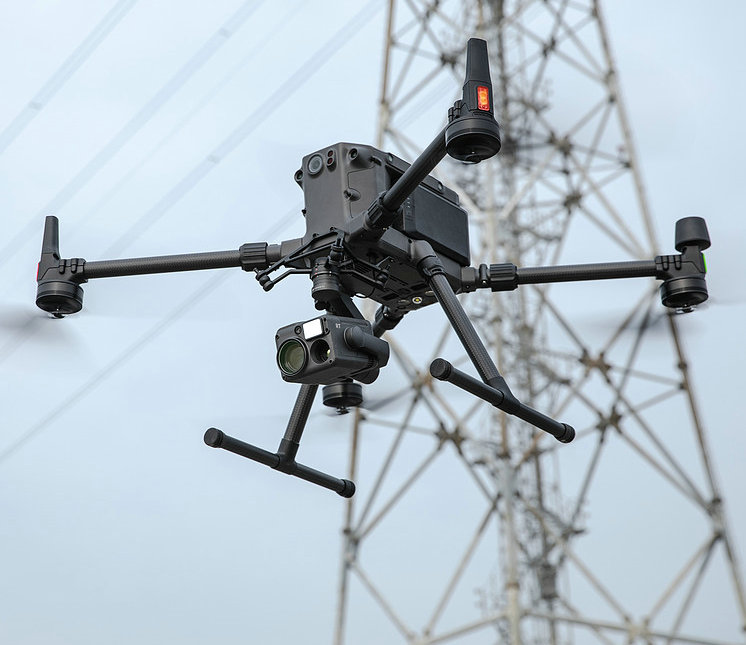

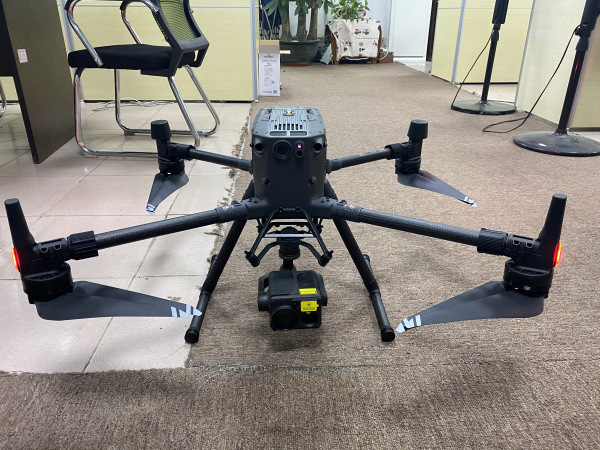

RTK (real-time kinematic)drone, is a GPS correction technique that provides real time corrections to location data while the drone is capturing imagery. with the RTK enabled drone, it’s now possible to capture desired accuracy data

RTK drones can enhance the precision of positional data from satellite based positioning systems. RTK drone relies on a single reference station to deliver correction data for geotags during flight. This means we not only use the GPS data from the drone, but the positional information from a nearby reference station to accurately pinpoint the location of the drone.

the main advantages of using an RTK drone are pretty obvious. It allows for on-demand surveys at a fraction of the time, increases map survey accuracy, and enables surveyors to capture high accuracy data more frequently

often referred to as a drone, is an aircraft that operates without a human pilot on board. UAVs can be controlled remotely by a human operator or operate autonomously through onboard computers or remote control systems. these aircraft are used in a wide range of applications, including military, commercial, scientific, recreational, and more.

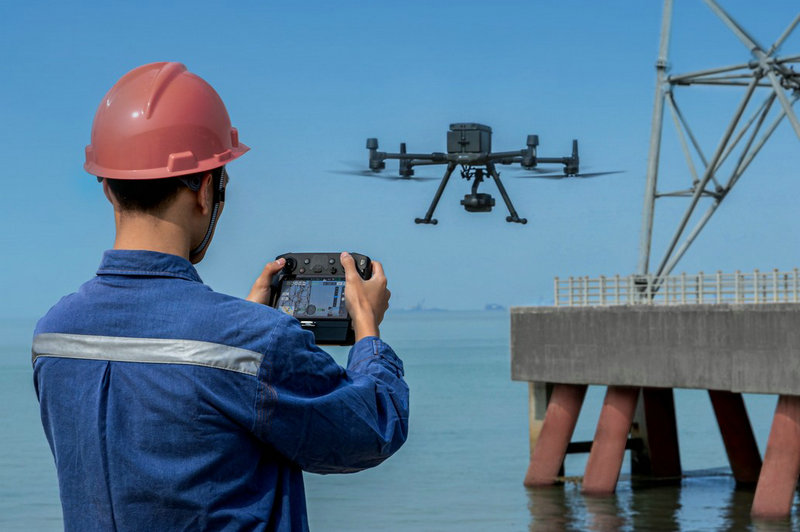

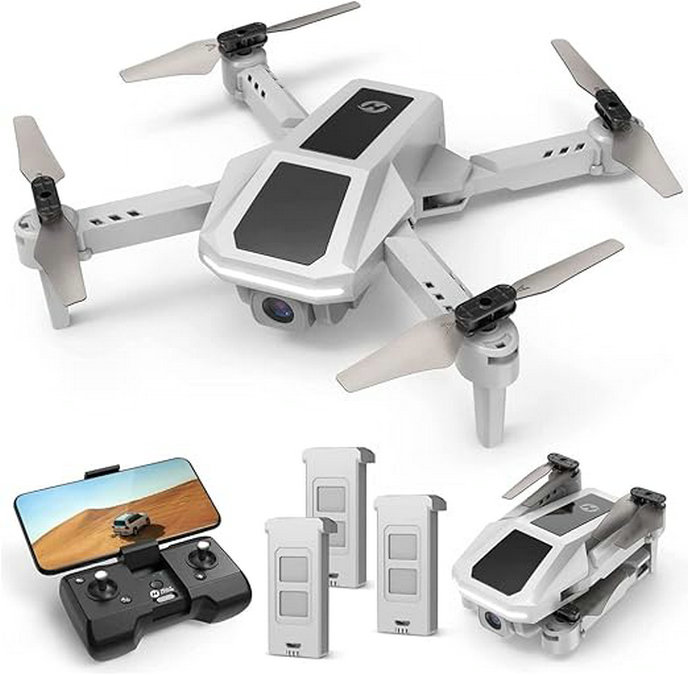

UAVs come in various sizes and configurations, from small quadcopters and fixed-wing aircraft to larger, more complex systems. This versatility allows them to be adapted for different purposes. many UAVs are operated by a human pilot using a remote control unit or a ground control station, which includes a control interface and communication equipment.

some UAVs are capable of autonomous flight using onboard sensors, GPS, and sophisticated navigation systems. They can perform tasks and return to their base without continuous human intervention. drones equipped with cameras are used for capturing aerial photos and videos for various purposes, including filmmaking, surveying, real estate, and event coverage.

hexacopter unmanned drones are known for their stability, especially in windy conditions. the extra rotors contribute to improved balance and resistance to external forces, making them valuable for aerial photography, videography, and inspection tasks that require stable flight. hexacopter unmanned drones are versatile and can be used in various industries and applications. they are employed for aerial photography and videography, industrial inspections, agricultural surveys, search and rescue operations, mapping and surveying, and more.

RTK matrice drones, RTK(real time kinematic) UAVs, best RTK surveying drones, mapping UAVs, camera drones,dults drones, unmanned aerial vehicle UAV parts,flight control systems
satellite system: GPS+BDS+Glonass+Galileo+QZSS,
satellite tracking: BDS: B1I, B2I, B3I, B1C, B2a, B2b
GPS: L1C/A,L1C,L2C,L2P,L5
GLONASS: G1,G2,G3. Galileo: E1,E5a,E5b,E6. QZSS: L1C/A,L1C,L2C,L5. IRNSS: L5. SBAS: L1C/A.
number of channels: 1408
initialization:99.99%
continued testing without network: supported
anti-interference: built-in multi-frequency anti-interference technology.
static accuracy:plane +/-(2.5mm + 0.5×10-6×D)mm, elevation +/-(5mm + 0.5×10-6×D)mm
RTK accuracy:plane +/-(8mm + 1×10-6×D)mm, Elevation +/-(15mm + 1×10-6×D)mm.
tilt compensation accuracy: 8mm + 0.3 mm/degree
video measurement accuracy:typical 2~4cm, measurement distance 2~15 meters
IMU update rate: 200Hz
tilt angle:0 degrees-60 degrees
senseless super inertial navigation: no initialization required Indicator lights: satellite light (1pc), differential data light (1pc), static indicator light (1pc), power light (1pc)
buttons: static switch key + power, confirm key
web page: supports PC and mobile web pages

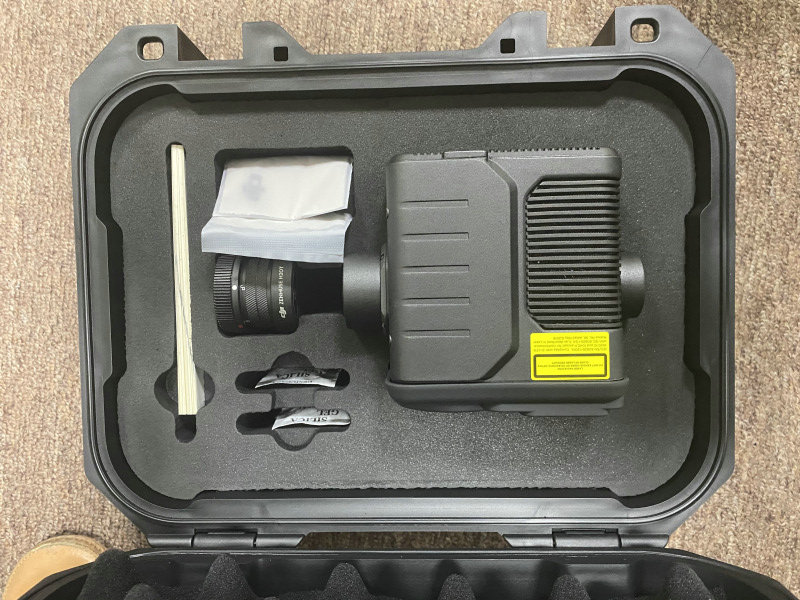

camera: frequency measurement, efficiency increased by 60%, three-dimensional modeling doubles the efficiency of internal and external operations. AR real-scene navigation, keep track of where you want to avoid getting lost, visual stakeout, one shot put in place.
pixel: 2MP&5MP
frame rate: 25Hz
field of view (H, V): 75 degrees, 75 degrees
illumination: starlight-level camera, OmniPixel 3-GS; maintain full color image under 0.01lux illumination
size:Φ133.5mm*80mm
weight:725g
material: magnesium alloy
working temperature: -45 degrees ~ +75 degrees
storage temperature: -55 degrees ~ +85 degrees
waterproof and dustproof: IP68
anti-impact: IK08
battery: typical battery life of the mobile station is more than 16 hours
fast charging: 1 hour of charging, typical battery life of more than 8 hours
external power supply: DC 5-12V
storage: 8GB, supports external expansion 128G (U disk/TF card)
differential data: RTCM2.X, RTCM3.X, CMR, CHC516
positioning data: NMEA-0183 Static data: HCN, RINEX 2.11, RINEX3.02
wireless connection: supports Wi-Fi data link
WiFi: Wi-Fi IEEE 802.11a/b/g/n/ac
bluetooth: 5.0 & 4.2 +EDR, backward compatible
network module: handbook supports 4G full network communication
radio: built-in single-receiver radio, supports TT450, transparent transmission protocol, compatible with mainstream radio protocols Super dual reception: supports radio + network two-way data simultaneous differential
one-click matching: supports one-click matching of base station data
one-click fixing: comes with CORS and fixes it when you turn on the computer
model:iD3
network: 4G full Netcom, built-in eSIM
operating system: android 10
CPU: Octa-core 2.0GHz
RAM+ROM:3GB+32GB
LCD screen: 5.5'' high-definition display
physical buttons: full-function buttons, supports measurement shortcut keys
camera:1300w
battery: typical battery life 14 hours
waterproof and dustproof: IP68
