Offset Drive Pins: A Precision Solution for Difficult Workpiece Driving

In the field of CNC turning and grinding, workholding is critical for machining accuracy and productivity. One specialized yet highly effective accessory is the offset drive pin, commonly found on face drivers. Unlike standard symmetrical pins, offset pins are deliberately positioned or shaped asymmetrically relative to the driver’s centerline. This small geometric change provides significant advantages, especially when machining short shafts or parts with small or no center holes.

A typical face driver consists of three main components: a shank for machine interface, a spring-loaded center tip for workpiece alignment, and multiple drive pins that transmit rotational torque. In standard drivers, pins are arranged symmetrically. However, the offset drive pin introduces a non‑symmetrical contact pattern, allowing the pin to grip the workpiece end face more aggressively. This design excels under challenging conditions.

First, offset pins enable secure driving when the workpiece has a very small center hole — sometimes less than 5 mm in diameter. Standard pins would struggle because they rely on deeper center holes for force distribution. Second, they tolerate end‑face irregularities. Many industrial face drivers with offset pins can handle workpiece end slopes up to 7 degrees. Hydraulic or spring‑loaded compensation ensures each pin maintains firm contact even if the surface is not perfectly flat. Third, offset pins improve performance in medium‑roughing operations: they provide higher torque transmission without damaging the workpiece surface.

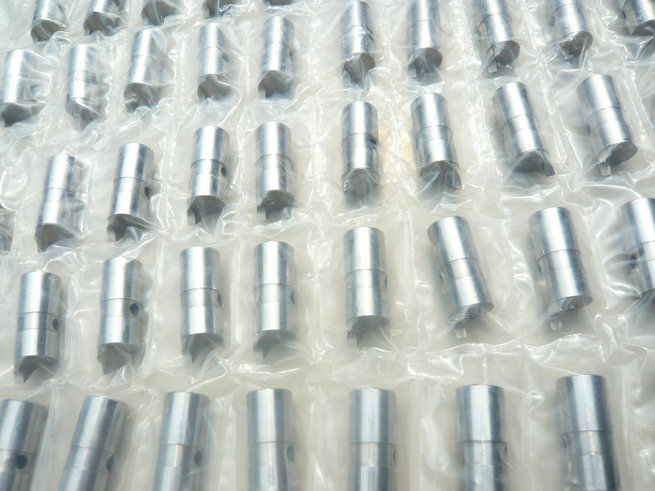

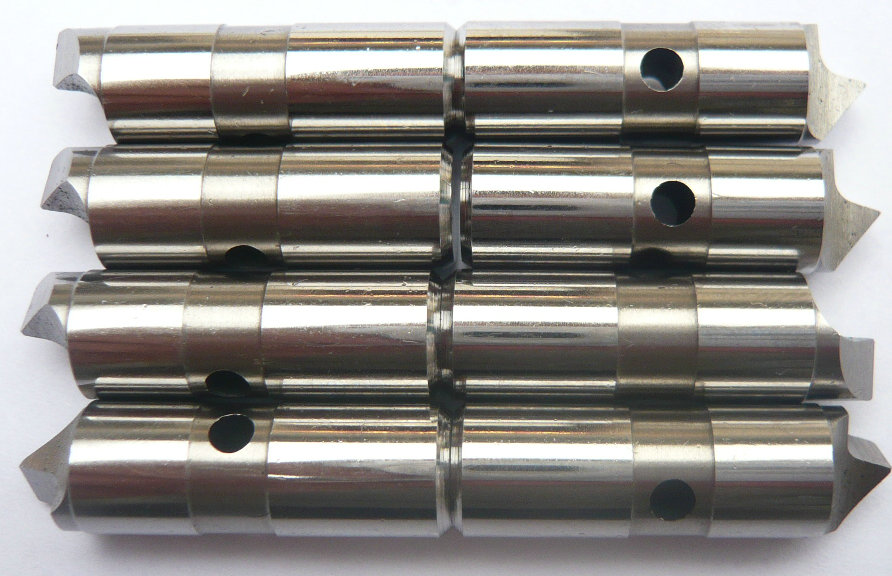

FDP-8 standard of drive pins, mechanical face drivers, lathe face driver driving pins, center points, changeable driving pins, drive teeth pins

Typical specifications for offset pin drivers include a driving diameter range of 7 to 25 mm (0.28–0.98 inches), four pins per driver, and a maximum workpiece weight around 38 kg (84 lb). It is important to match the pin orientation to the spindle rotation direction; clockwise rotation may require “left hand” offset pins. Additionally, the workpiece blank diameter should be at least 0.76 mm (0.03 inches) larger than the driving diameter to ensure sufficient pin engagement.

offset drive pins are not a general‑purpose solution but a targeted accessory for specific difficult workpieces. When faced with short parts, small center holes, or uneven cast surfaces, a face driver equipped with offset pins can transform an unstable setup into a rigid, high‑productivity process – exactly when standard pins fall short.
