manufacturer of Workholding half offset drive blades as face driver parts for Shafts,Gears, Rotors! supplier of half offset tungsten face drive pins for Crankshafts,Camshafts, Differential Cases!

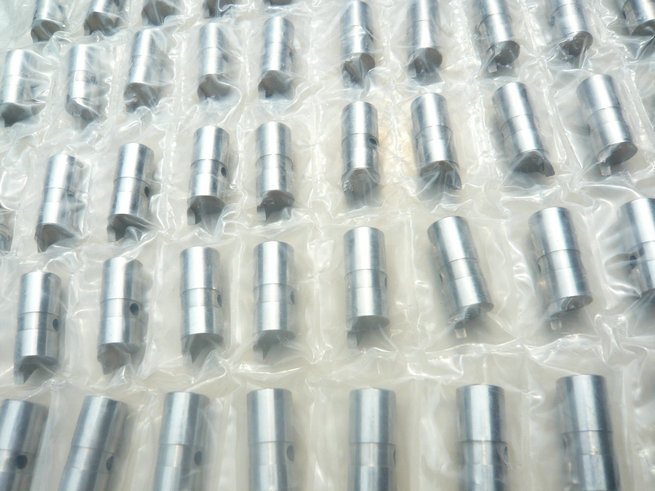

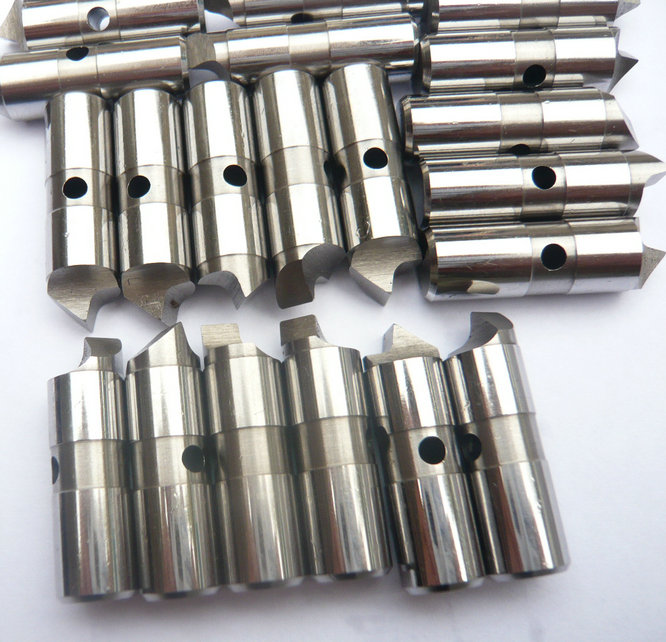

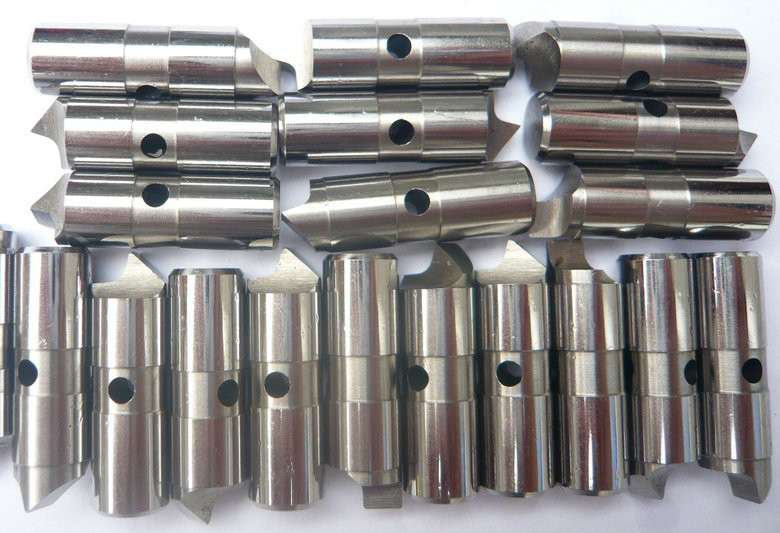

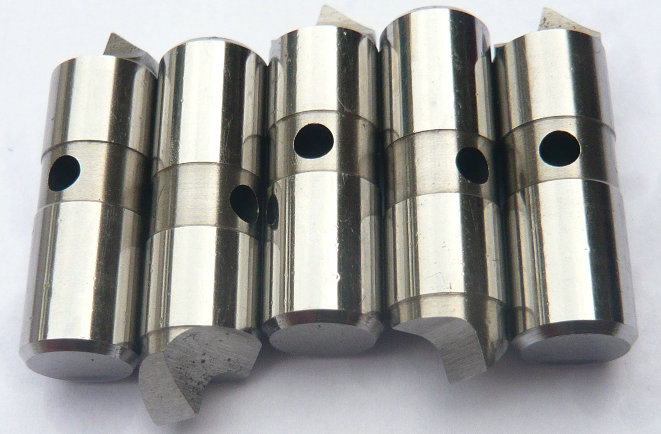

Precision Half Offset Drive Pins – Engineered by Industry Leaders

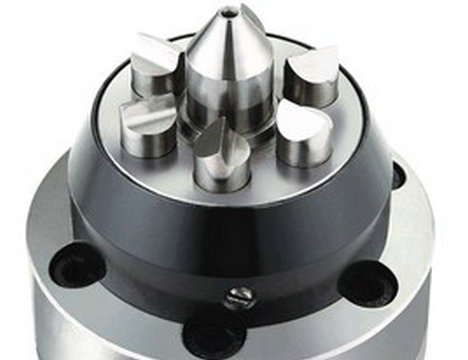

As a specialized manufacturer of Half Offset Drive Pins, we provide critical components for high-performance face drivers used in modern CNC turning, grinding, and gear cutting. Our drive pins are designed to replace conventional clamping methods and enable “one‑setup complete machining” of shaft‑type workpieces.

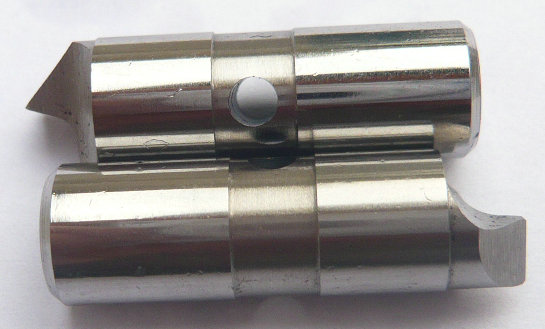

Half Offset Drive Pins are asymmetrically positioned on both sides of the face driver’s center line. Unlike center‑offset (symmetrical) pins, our half‑offset design distributes driving force more effectively when the workpiece end face is uneven or has an existing center hole. The pins “bite” into the end face as tailstock force is applied, transmitting spindle torque directly to the workpiece without requiring external chucking.
Enhanced Torque Transmission – The half‑offset layout creates a larger effective lever arm, allowing higher cutting loads without pin slippage.
Adaptability to Rough Surfaces – Perfect for forged, cast, or pre‑machined parts with irregular end faces, where symmetrical pins might lose contact.
Higher Rotational Speeds – Because clamping force comes from tailstock thrust (not centrifugal force), our pins maintain grip at high RPMs, unlike traditional chucks.
Reduced Setup Time – Eliminates the need for re‑chucking; the entire outer diameter and both end faces can be machined in one operation.
Application of half Offset hardmetals drive pins (face driver parts), chuck drive pins
| Application | Primary Machine Tools | Typical Workpieces | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Turning CNC Lathes, | Mill-Turn Centers | Shafts, Gear Shafts, Motor Rotors, Drive Shafts | |||||||||
| Grinding | Cylindrical Grinders | Precision Shafts (e.g., Crankshafts, Camshafts) | |||||||||
| Gear Processing | Gear Hobbing Machines, | Gear Grinding Machines Transmission Gear Shafts, Reducer Gear Shafts | |||||||||
| Heavy-Duty Cutting | Large Lathes, Special-Purpose Machines | Differential Housings, Heavy Shafts with high stock removal | |||||||||
Difference between Half Offset Drive Pins and Center Offset Drive Pins
| Feature | Half Offset Drive Pins | Center Offset Drive Pins | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pin Position | Located on both sides of the center point (asymmetric distribution) | Essentially symmetrical distribution around the center | |||||||||
| Typical Application | Medium-duty roughing and general machining | High-precision finishing | |||||||||
| Workpiece Requirement | Suitable for uneven end faces or workpieces with an existing center hole | Requires a flat and regular end face | |||||||||
Our Half Offset Drive Pins are widely used on: CNC lathes & mill‑turn centers – for shafts, gear blanks, motor rotors, and transmission shafts. Cylindrical grinders – precision grinding of camshafts, crankshafts, and hydraulic piston rods. Gear hobbing & grinding machines – machining gear shafts with demanding concentricity requirements. Heavy‑duty lathes – roughing of large differential housings and axle components.
We also offer customization – pin length, offset distance, and mounting interface can be tailored to match any face driver brand (e.g., RÖHM, SMW, AUTOBLOK, or Chinese equivalents). Short lead times, full technical support, and OEM/ODM services are availabl
