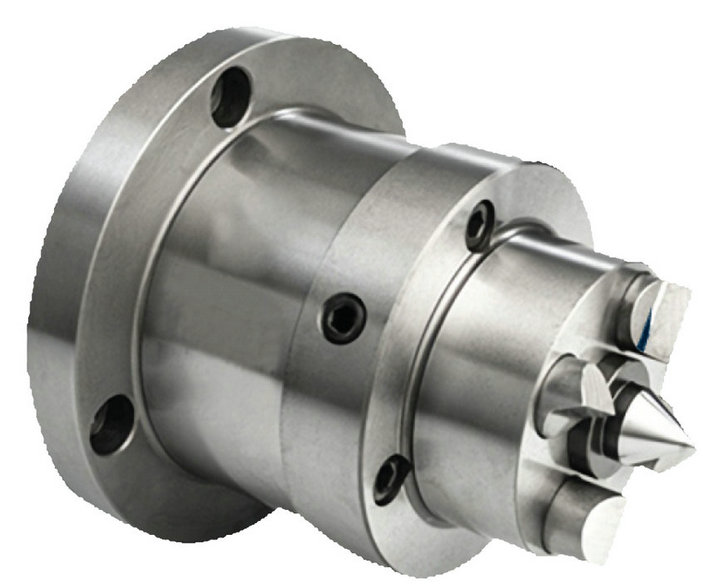

hydraulic face drivers including:driver body,rotating spindle,hydraulic system, replaceable inserts. hydraulic face drivers are precision machining tools used in turning operations to hold and rotate large, heavy, or irregularly shaped workpieces. They are particularly useful in industries such as aerospace, automotive, and oil and gas, where high precision and efficient machining of complex parts are required.
driver body main housing that contains the hydraulic system and the rotating spindle. rotating spindle extends from the driver body and makes contact with the workpiece. It rotates the workpiece during machining. hydraulic system: consists of hydraulic fluid and pressure mechanisms that exert force to engage and grip the workpiece. replaceable inserts are often made of hardened steel and are interchangeable to accommodate different workpiece sizes and shapes.
The workpiece is placed against the rotating spindle of the hydraulic face driver. The driver exerts hydraulic pressure to push the replaceable insert against the workpiece. The hydraulic pressure causes the insert to grip the workpiece firmly. The rotating spindle ensures that the workpiece is centered and held securely. As the lathe spindle rotates, it transfers the rotational force to the hydraulic face driver. The driver, in turn, rotates the workpiece at high precision, allowing for accurate turning, milling, or drilling operations.
face drivers provide excellent concentricity and accuracy during machining. Reduced Vibration: By securely gripping the workpiece, they minimize vibration, leading to improved surface finish and tool life. Suitable for Large Workpieces: Hydraulic face drivers are ideal for holding large and heavy workpieces that may be challenging to grip with traditional chucks.
High Precision Machining: They ensure excellent concentricity and accuracy, crucial for precision parts. Reduced Vibrations: By securely gripping the workpiece, they minimize chatter and vibrations, leading to better surface finishes. Suitability for Large Workpieces: Hydraulic face drivers can handle heavy, large, or irregularly shaped workpieces with ease. Versatility: They can accommodate a range of workpiece shapes and sizes by changing the inserts.
Machining of aircraft engine components, landing gear parts, and structural components. Production of shafts, gears, axles, and other precision automotive parts. Manufacturing of valves, flanges, connectors, and other oilfield equipment. Machining of large industrial parts for construction equipment, mining machinery, etc.
hydraulic face drivers are advanced machining tools that provide high precision, reduced vibrations, and efficient setup for turning operations. They are particularly useful for industries that require precise machining of large, heavy, or complex workpieces.

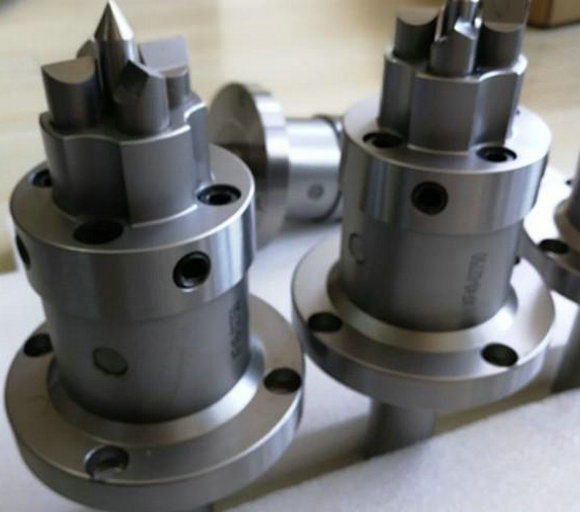

face drivers are used on gear processing lathes to hold and rotate a gear or workpiece during the cutting process. They are designed to grip the workpiece by its face, rather than its outer diameter, which allows for more accurate and precise machining. it is important to follow proper safety procedures when using face drivers and other lathe accessories, including wearing appropriate personal protective equipment and adhering to all manufacturer instructions and guidelines.
drive pins (quantity) | drive pins (diameter) | face drivers (diameter) | face drivers bodies | screws | center pins | FD technologies | |||||
---|---|---|---|---|---|---|---|---|---|---|---|
3 | 6 | 160 | 48 | 3 | 22 | FD 2023 | |||||
3 | 8 | 160 | 48 | 3 | 22 | FD 2023Z | |||||
3 | 6 | 160 | 42 | 3 | 6 | FD 2023F | |||||
3 | 8 | 160 | 48 | 3 | 8 | FD 2023D | |||||
6 | 10 | 160 | 70 | 3 | 14 | FD 2023H | |||||
6 | 10 | 160 | 70 | 3 | 18 | FD 2023D | |||||
6 | 15 | 160 | 80 | 3 | 14 | FD 2023S | |||||
6 | 15 | 160 | 90 | 3 | 24 | FD 2023GF | |||||
6 | 15 | 160 | 100 | 3 | 28 | FD 2023F | |||||
6 | 20 | 160 | 132 | 3 | 35 | FD 2023JG | |||||
6 | 20 | 220 | 182 | 3 | 35 | FD 2023DS | |||||
6 | 20 | 250 | 212 | 3 | 35 | FD 2023GG | |||||
6 | 20 | 290 | 255 | 6 | 50 | FD 2023JKKL | |||||
6 | 20 | 348 | 302 | 6 | 50 | FD 2023F | |||||
6 | 30 | 440 | 360 | 6 | 80 | FD 2023FDD | |||||
6 | 30 | 490 | 410 | 6 | 80 | FD 2023H | |||||
