CNC tool holders are designed to safely hold a cutting tool in a precise location. Depending on the tool holder you choose, some offer incomparable accuracy and a firm grip, while others allow the cutting tool to float to prevent a broken tool. all holders need to be precision-engineered to offer the cutting accuracy and long-lasting performance you need. A damaged tool holder can be a major setback and costly replacement, so it’s important to invest in the right holder and look for signs of wear.
tapered tooling offers an accurate cut and increased tooling lifespan. a custom tool holder gives your CNC machine the capability of tackling unique projects with custom tooling. work with a leading tooling company to design the ideal holder for your project.
a tool holder, if maintained, can handle high-performance CNC machining day in and day out. However, a tool holder undergoes extreme pressure with heavy use. Over time, this vital component will need to be serviced or replaced.
collets can be replaced every two to three months if they are used continuously throughout the day. A worn collet will cause your tooling to wander, which affects the quality of your production and the life of your cutting tool.
whether you’re working in the automotive, farm implement, medical or machine tool industries, enjoy industry-leading products and prices. Contact us today to learn more about your tooling options and ask about any maintenance or custom tooling requests. Our experienced sales engineers can work with you to provide solutions that keep your company moving forward.
HSK100A-HSK100A-135L HSK100A-HSK100A-200L HSK100A-HSK100A-130L HSK100A-HSK100A-110L HSK100A-HSK100A-80L HSK63A-HSK63A-95L HSK63A-HSK50A-80L HSK63A-HSK40A-80L HSK63A-HSK32A-45L HSK50A-HSK50A-80L HSK50A-HSK40A-70L HSK50A-HSK32A-45L
taper degree 7:24 | |||||||||||
NT (DIN2080) ST, NT =ISO2583 | |||||||||||
DIN 69871 (DIN 69871 A/AD, DIN 69871B) DIN, JT, DAT, DV | |||||||||||
IS0 7388/1 (International Standard) IT, IV | |||||||||||
ANSI B5.50/ASME (American Standard) CAT | |||||||||||
MAS (Japan Standard) BT | |||||||||||
taper degree 7:24 | |||||||||||
DIN69873 HSK-A (automatic tool change with internal coolant) | |||||||||||
DIN69873 HSK-B, | |||||||||||
DIN69873 HSK-C (manual tool change with internal coolant) | |||||||||||
DIN69873 HSK-D, | |||||||||||
DIN69873 HSK-E (automatic tool changer with internal coolant, high-speed type) | |||||||||||
DIN69873 HSK-F | |||||||||||
HSK tool holders,face drivers, tool holder clamps, lathe collet chucks, tool holders for CNC machining center,CNC machines holders, parts |
---|

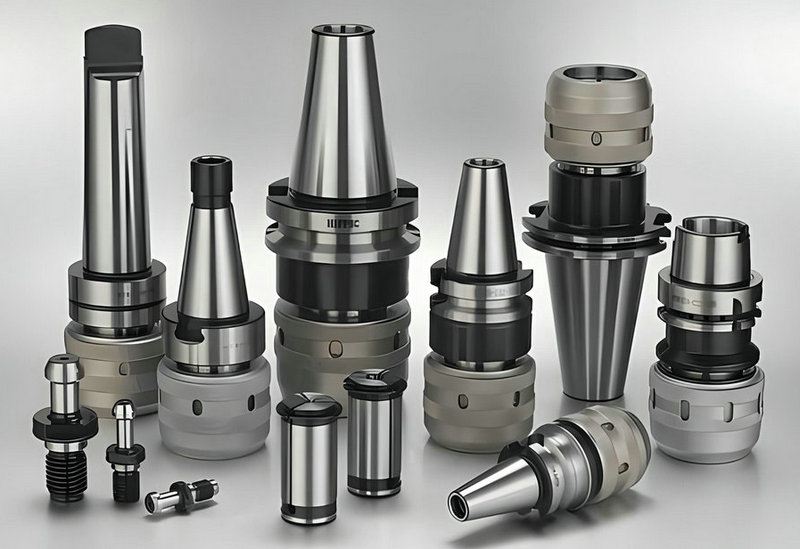

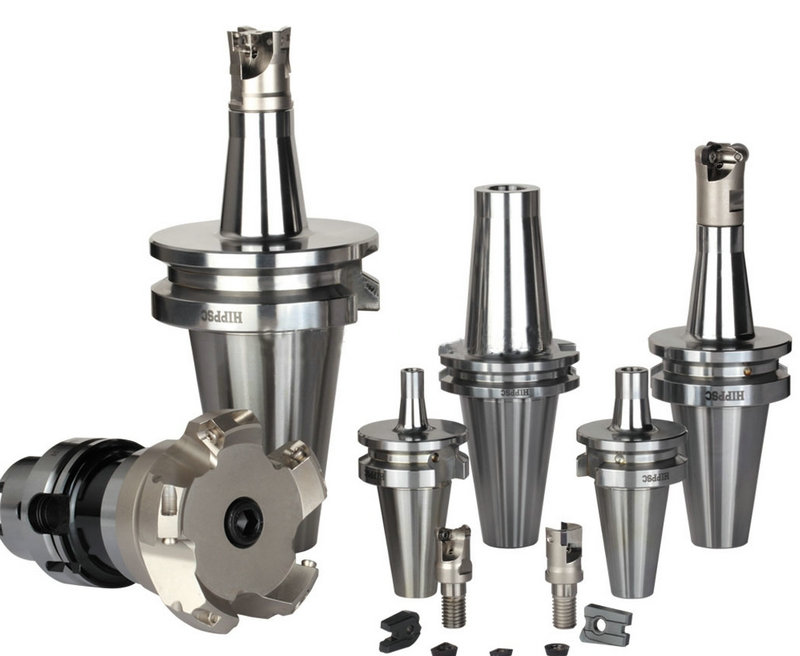

Types of CNC tool holders: collet chucks, boring bar holders ,end mill holders, shell mill holders, milling arbor adapters, toolholder extensions, tapping holders,
parameters | spring clamp tool holder | hydraulic tool holders | heat shrinkable tool holders | ||||||||
beat: | < 10un | > 5um | >3um | ||||||||
versatility: | Applicable to all processes. | Limited to high-speed processing, | superior to high-speed processing | ||||||||
rigidity | good | bad | better | ||||||||
dynamic balancing: | good | generally | better | ||||||||
shock: | no, | absorb shock | no | ||||||||
work: | Accuracy depends on the operator. | Fixtures require careful maintenance | Standard operation | ||||||||
cost: | average | expensive | better | ||||||||
HSK tool holders,face drivers, tool holder clamps, lathe collet chucks, tool holders for CNC machining center,CNC machines holders, parts. |
---|
Milling Operations: Used for end mills, face mills, slot drills, and indexable cutters in milling machines. Turning Operations: Hold turning inserts, boring bars, and grooving tools in CNC lathes. Drilling Operations: Secure drill bits, countersinks, and reamers in CNC drilling machines. Tapping Operations: Hold tap holders for threading operations in CNC tapping centers.
CNC tool holders are essential components in CNC machining, providing precision, rigidity, and efficiency during cutting operations. They come in various types and sizes to accommodate different cutting tools and machine requirements. Choosing the right tool holder is crucial for achieving accurate and high-quality machining results.
