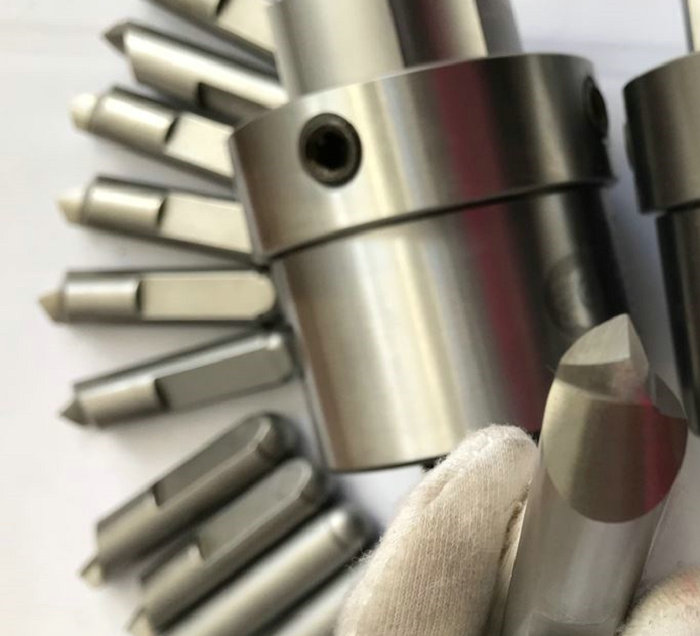

manufacturer of 4-Pin System: rounded-end standard drive pins function on lathes, grinders and gear cutters! supplier of 4-Pin System: Right-hand(RH) face drivers and Left-hand(LH) Lowered rounded-end drive pins.

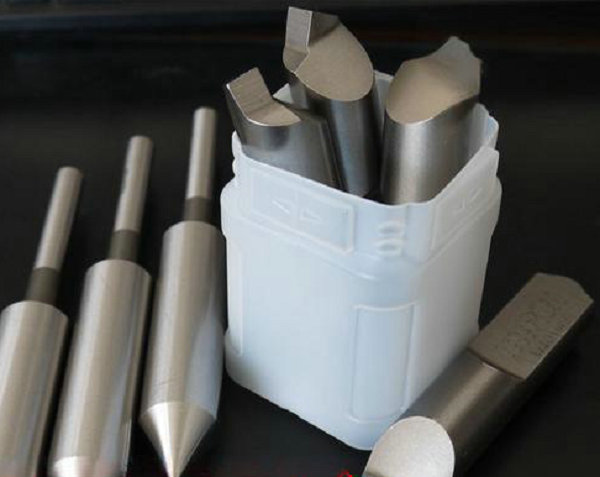

Technical Specifications of Rounded End Standard Drive Pins, As a manufacturer of replacement drive pins for high-performance face drivers, we specialize in the Rounded End Standard design.

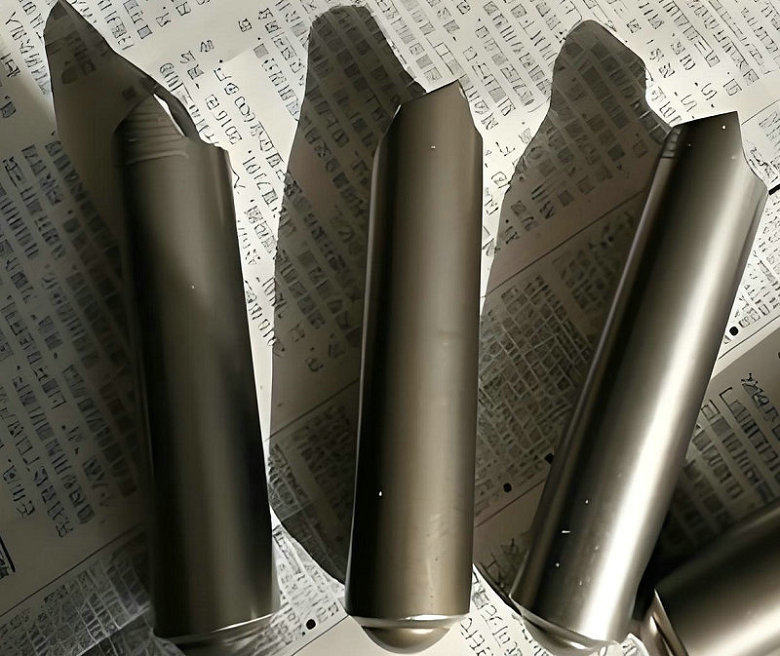

Core Design Philosophy: The Rounded End: Unlike conventional drive pins that feature a flat tail face or a centering hole, our Rounded End Standard drive pins feature a fully radiused, hemispherical tail.

Functional Purpose: This rounded geometry is designed for articulation. It allows the pin to self-align within the driver body, accommodating angular misalignment between the pin and the internal actuating mechanism.

Technical Benefit: The rounded end ensures consistent, point-contact force transmission, which improves load distribution across all four pins and reduces the risk of binding.

Fixed Configuration: 4-Pin System: Our drive pins are manufactured for face drivers that utilize a fixed 4-pin configuration.

This is not an arbitrary number; it is the optimal balance between torque transmission and contact surface area for most general turning operations. End-users can rely on a consistent replacement set of 4 pins per face driver, simplifying inventory management.

Material Specifications: To meet the demands of heavy-duty turning, our Rounded End Standard drive pins are manufactured from a specialized Vanadium-Molybdenum alloy steel.

Properties: This material offers a unique combination of high core resilience (to withstand shock loads) and surface hardness (to resist wear and indentation). Heat Treatment: All pins are fully hardened, ensuring the rounded tail profile maintains its geometry under repetitive heavy loading.

Functional Classifications (Standard Only) As a manufacturer of Standard duty pins, we focus on the most common operational requirements. Our pins are available in two functional variants based on spindle rotation:

Right-Hand (RH) / Clockwise Rotation: Designed for standard turning operations where the spindle rotates clockwise (viewed from the operator’s position). Left-Hand (LH) / Counter-Clockwise Rotation: Designed for reverse rotation applications.

Performance Features: Compensation Capability: The combination of the rounded tail and the precise length tolerance allows the complete face driver assembly to compensate for workpiece face irregularities up to 3mm of tilt.

Maintenance: Our pins are designed for tool-less or rapid replacement. End-users can replace worn pins without disassembling the entire face driver from the machine spindle. Quantity per Driver: Each standard face driver requires exactly 4 drive pins.

The Rounded End Standard drive pin is a technically distinct component characterized by its articulating tail, 4-pin fixed count, and durable Vanadium-Molybdenum steel construction. We supply these critical wear parts as direct replacements for standard-profile applications..
